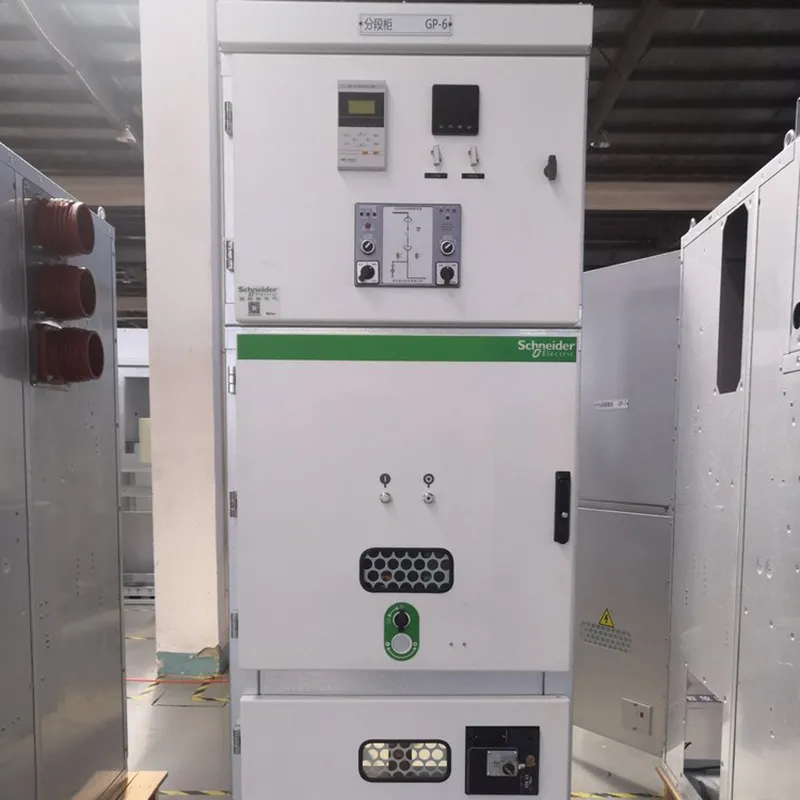

Schneider Authorized IEC 61439 Low Voltage Distribution Panel Solution

The Schneider Electric Prisma E series is a standardized low-voltage with a rated current up to 630A,  designed for various building and industrial power distribution needs.

Details

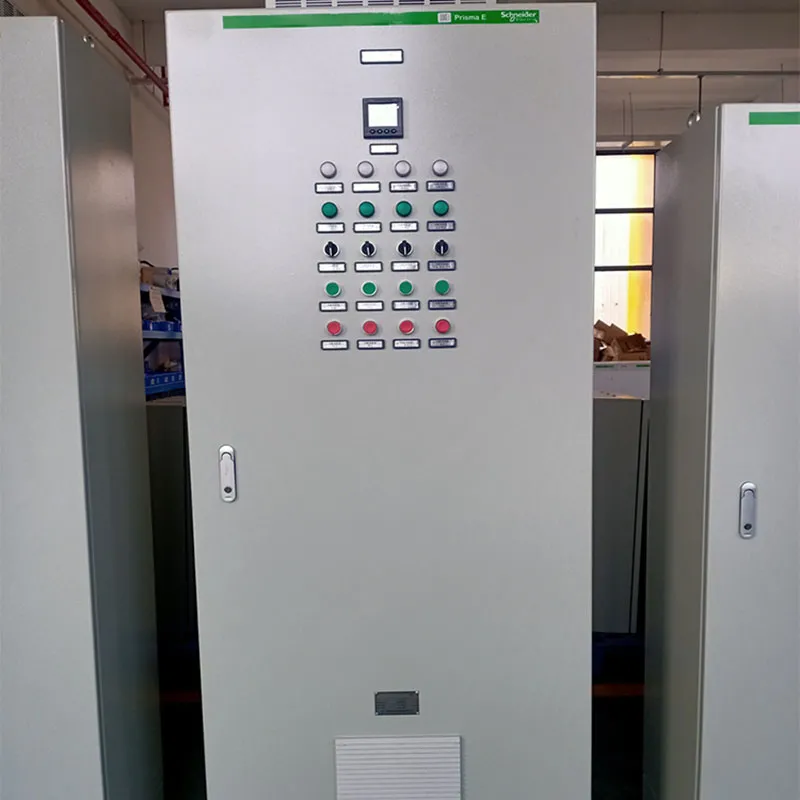

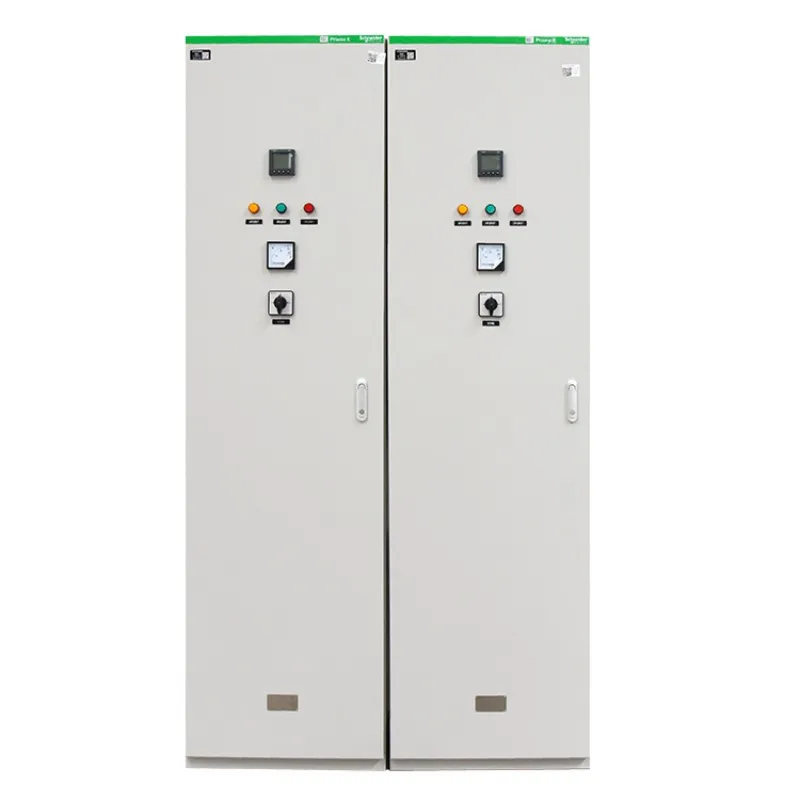

Modular Schneider Electric Distribution Equipment for Commercial and Industrial Projects

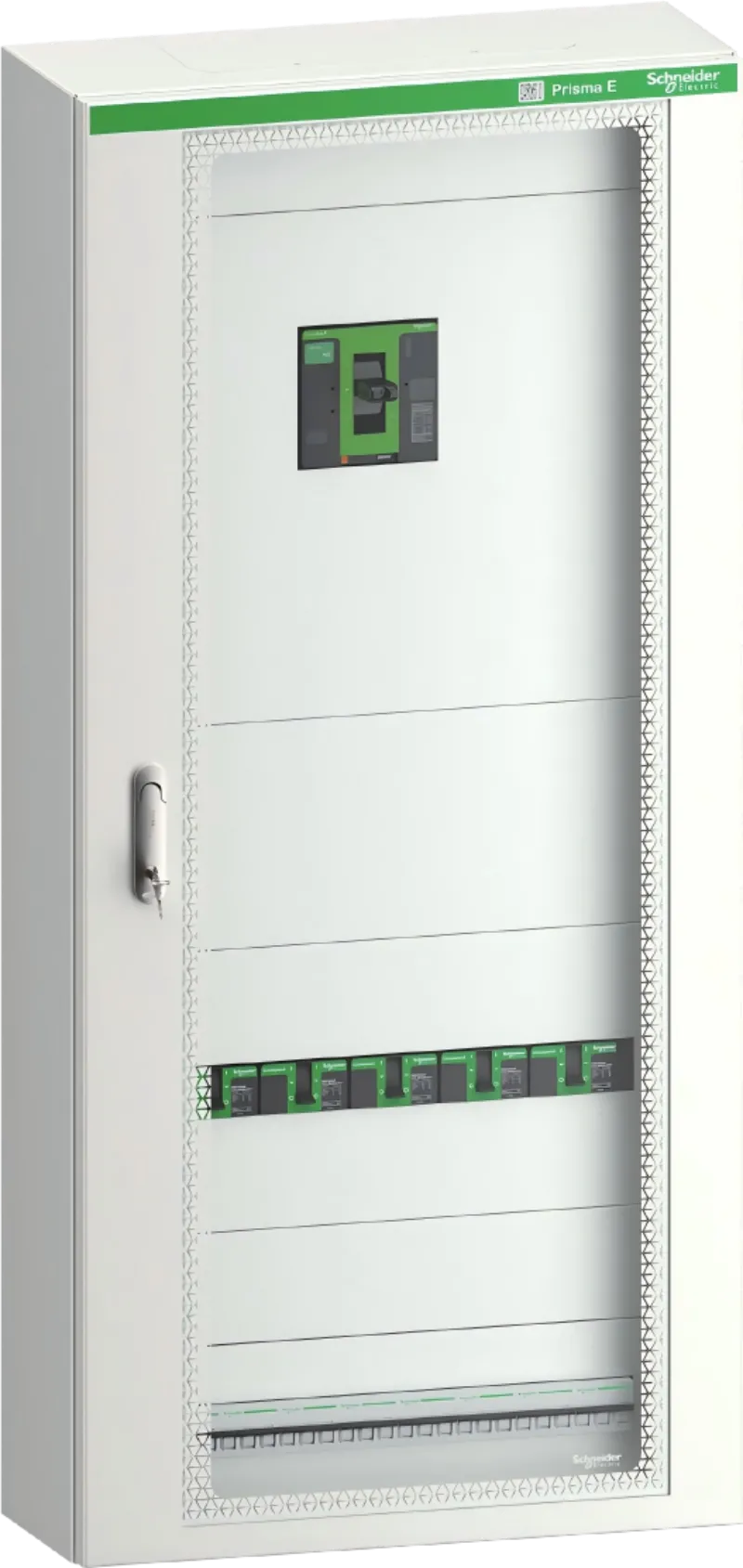

Schneider Prisma E low-voltage distribution equipment is a standardized modular system designed for secondary power distribution in commercial buildings, hotels, hospitals, and industrial facilities. Based on the Schneider Electric Prisma platform, each Prisma E panel supports rated current up to 630A, with a rated operational voltage of 400V AC and configurable enclosure protection from IP30 to IP54. The system allows flexible incoming and outgoing feeder arrangements, energy metering, and monitoring functions to meet different project requirements.


Prisma E Technical Specifications

Prisma E panels are configured according to electrical load requirements, installation conditions, and project specifications.

Technical ParameterSpecification
Product TypeLow Voltage Distribution Panel
Rated Current (In)Up to 630A
Rated Operational Voltage (Ue)400V AC
Rated Insulation Voltage (Ui)800V AC / 1000V AC
Rated Impulse Withstand Voltage (Uimp)8kV
Short-time Withstand Current (Icw)20kA/1s
Peak Withstand Current (Ipk)40kA / 42kA
Enclosure Protection DegreeIP30, IP31, IP40, IP41, IP54

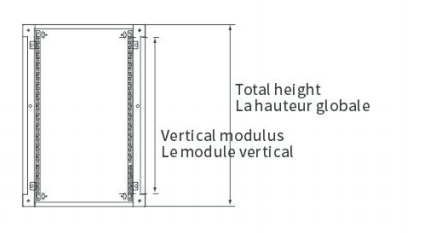

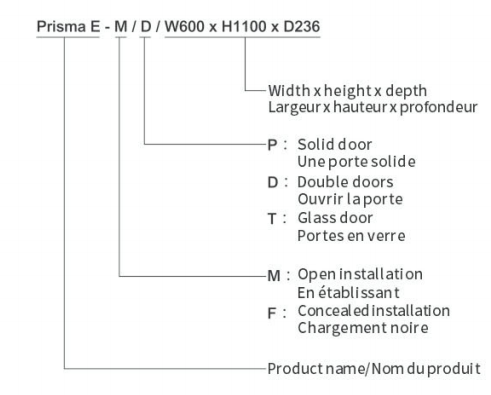

Cabinet Height500, 700, 900, 1100, 1300, 1650, 1850mm
Cabinet Width600mm / 600+300mm
Cabinet Depth236, 250, 306, 506mm
Applicable StandardsIEC 61439, GB/T 7251.1-2023, GB/T 7251.2-2023

Final electrical ratings and enclosure specifications are subject to the selected configuration and approved technical drawings.

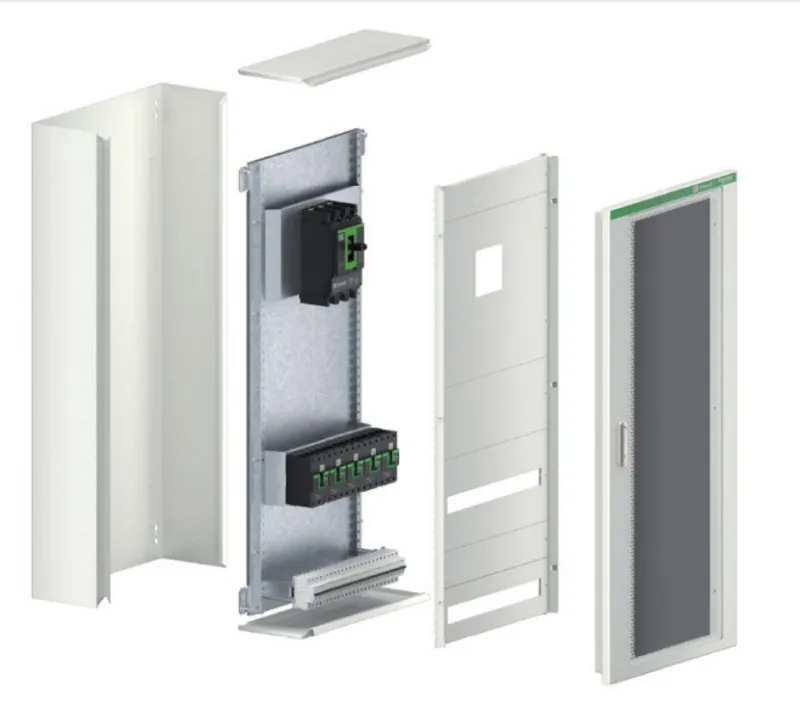

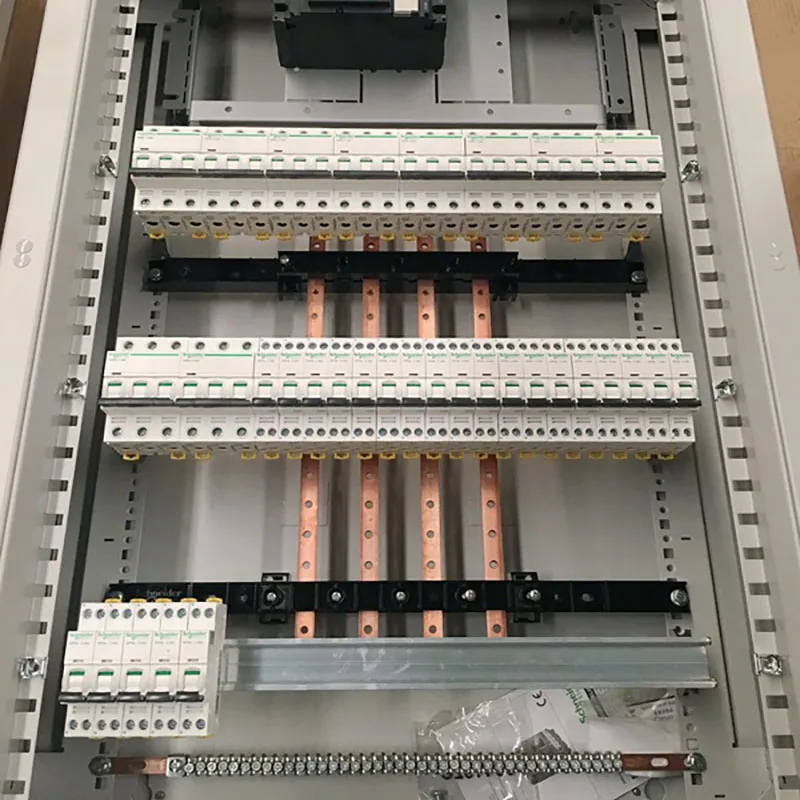

Modular Prisma E Panel Configuration

The Prisma E distribution system uses standardized modular components to accommodate different power distribution requirements. Prisma panels can be configured with incoming feeders, outgoing circuits, metering units, and monitoring modules.

ConfigurationAvailable Options
Incoming FeedersMain incoming power distribution arrangements
Outgoing CircuitsCircuit quantity and distribution layout based on the electrical load
Energy MeteringDigital meters and energy measurement modules
Monitoring FunctionsIntelligent monitoring modules and compatible BMS integration

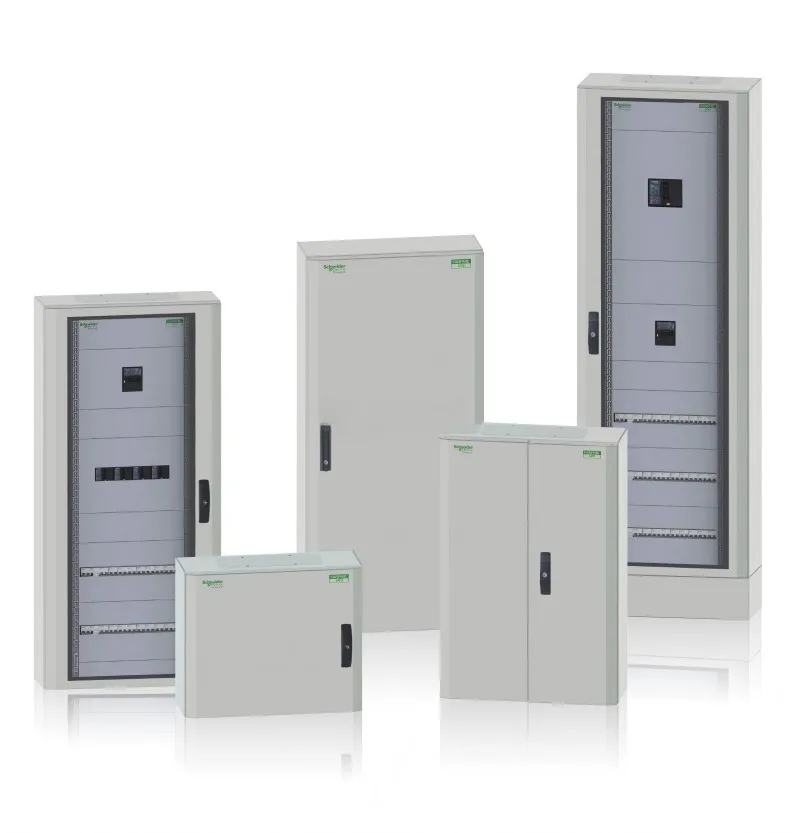

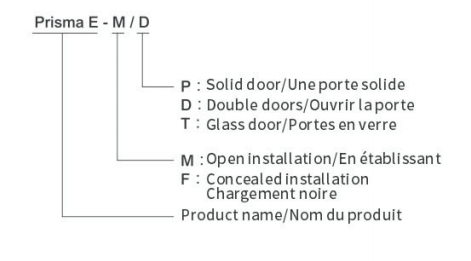

Cabinet StructureWall-mounted or floor-standing configurations
Enclosure ProtectionIP30, IP31, IP40, IP41, IP54
Cabinet DimensionsMultiple height, width, and depth combinations

The modular structure allows additional distribution circuits and monitoring functions to be considered during project expansion. Each Prisma panel layout is finalized according to the approved single-line diagram (SLD).


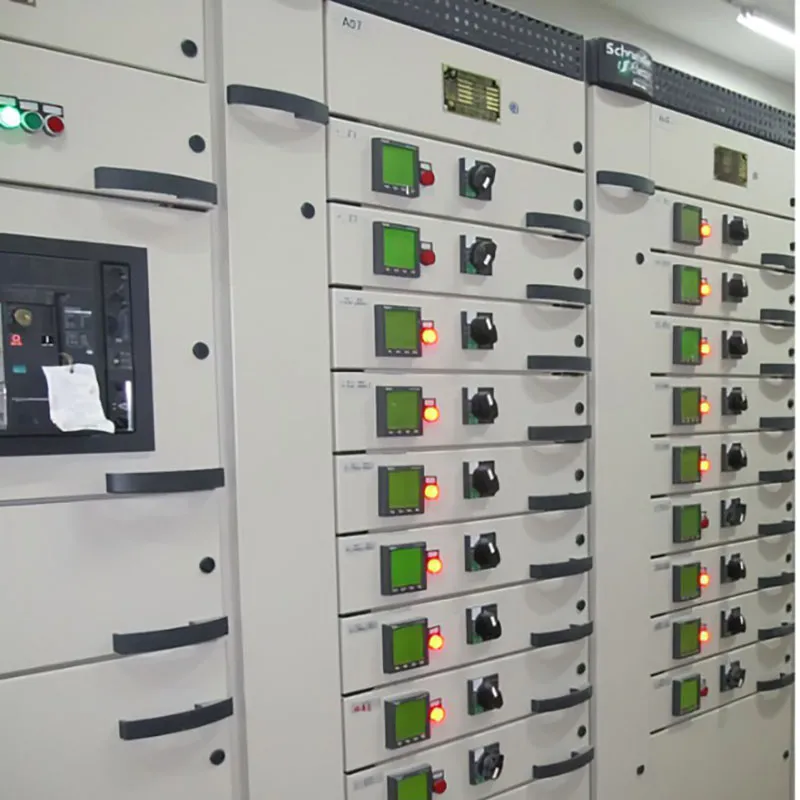

Applications of Schneider Prisma E Distribution Panels

Schneider Electric Prisma systems are suitable for secondary power distribution where reliable circuit management, compact installation, and flexible electrical configurations are required.

ApplicationTypical Distribution Requirements
Commercial BuildingsLighting, HVAC, elevators, and tenant power distribution
Hotels & ResortsGuest room power, kitchen equipment, HVAC, and utility systems
HospitalsGeneral power distribution, medical facility support, and emergency power circuits
Industrial FacilitiesWorkshop equipment, production lines, and auxiliary power distribution
Data CentersUPS distribution, auxiliary systems, and monitored power circuits
Shopping MallsRetail units, public lighting, HVAC, and common-area power

The selection of a Prisma electrical distribution panel depends on the connected load, feeder quantity, short-circuit requirements, enclosure protection, and installation space.


Project-Based Configuration and Customization

BK Electric provides project-oriented Prisma E configuration based on electrical drawings and installation requirements.

Customization can cover:

  • Electrical Configuration: Incoming and outgoing feeder arrangements, circuit quantity, and distribution layouts.

  • Cabinet Dimensions: Cabinet height, width, depth, and installation arrangement.

  • Protection Requirements: Selection of suitable IP protection according to the installation environment.

  • Metering & Monitoring: Integration of energy meters and compatible monitoring modules.

  • Cable Entry: Cable entry direction and internal cable routing according to site conditions.

For accurate configuration, please provide the single-line diagram, load schedule, required rated current, short-circuit level, and installation conditions.


Engineering Support and Technical Documentation

Technical coordination is available throughout the Prisma E project process, from initial specification review to final documentation.

ServiceDeliverables
Electrical Design ReviewSLD review and load requirement assessment
Cabinet LayoutGeneral Arrangement (GA) drawings
Component ConfigurationBill of Materials (BOM)
Electrical DocumentationWiring diagrams and connection information
Quality DocumentationRoutine test reports and factory inspection reports
Project InspectionFAT witness testing and third-party inspection upon request
Export DocumentationEnglish technical documentation packages

Technical drawings and component configurations are submitted for approval before production to reduce specification discrepancies and installation changes.


Production Lead Time, Packaging and Delivery

Production schedules are arranged according to the approved drawings, component availability, cabinet quantity, and project configuration.

Order TypeTypical Lead Time
Standard Prisma E ConfigurationApproximately 2–3 weeks after drawing confirmation and component availability
Customized Prisma E ConfigurationApproximately 4–6 weeks after technical approval

Export Packaging

Prisma E panels are packed for international transportation using:

  • Export-grade fumigation-free wooden crates.

  • Moisture-proof protective bags and desiccants.

  • Shock-absorbing materials to reduce transportation damage.

  • Secure cabinet fixing and protection for electrical components.

Packaging specifications can be coordinated according to shipment method, transportation distance, and destination requirements.


Frequently Asked Questions

What information is required to request a Prisma E panel quotation?

Please provide the single-line diagram, load schedule, rated voltage, rated current, short-circuit requirements, required IP rating, cabinet dimensions, and project quantity. These details help determine the appropriate Prisma E configuration.

How do I select the appropriate IP protection level?

IP selection depends on the installation environment. IP30 and IP40 configurations may be suitable for controlled indoor electrical rooms, while IP54 provides a higher level of protection against dust and water ingress. The final selection should consider the actual site conditions.

Can Prisma E panels integrate energy meters and monitoring systems?

Yes. Compatible energy meters and monitoring modules can be included according to project requirements. BMS integration and communication functions should be confirmed during the technical configuration stage.

What technical documents are supplied before production?

GA drawings and electrical configuration documents can be provided for approval. The project documentation package can also include wiring diagrams, BOM lists, routine test reports, and other agreed inspection records.

How is the Prisma E panel configuration confirmed before manufacturing?

The electrical requirements and single-line diagram are reviewed first. The cabinet layout, feeder arrangement, protection requirements, and component configuration are then finalized through technical drawing approval before production begins.


Request a Prisma E Distribution Panel Quotation

BK Electric provides Schneider Electric Prisma-based distribution panel configurations for commercial and industrial power distribution projects.

Send us your electrical drawings and project requirements to receive a technical proposal covering panel configuration, cabinet dimensions, protection level, production schedule, and export packaging.

Contact BK Electric for Prisma E panel specifications and project quotations.
