Dual Power Supply vs. Dual-Circuit Power Supply: Understanding the Key Differences

In modern electrical power distribution systems, ensuring a reliable and uninterrupted power supply is essential for critical facilities such as hospitals, data centers, transportation hubs, industrial plants, and commercial buildings. Two commonly used methods to improve power supply reliability are Dual Power Supply and Dual-Circuit Power Supply.

Although these terms are often used interchangeably, they represent different power distribution concepts and offer different levels of reliability. Understanding the distinction between them is crucial when designing electrical systems that meet operational and safety requirements.

This article explains the definitions, working principles, applications, and key differences between dual power supply and dual-circuit power supply systems.

What Is a Dual Power Supply System?

A Dual Power Supply System refers to a power distribution arrangement where electrical power is supplied from two independent power sources.

These sources may originate from:

• Two different utility substations

• Two separate transformer sections within a substation

• A utility power source combined with a standby generator

The two power sources operate independently, ensuring that if one source fails, the other remains available to maintain continuous power supply.

Main Characteristics

• Two completely independent power sources

• High reliability and redundancy

• Automatic Transfer Switch (ATS) enables rapid switching

• Suitable for critical loads and essential operations

Typical Applications

Dual power supply systems are commonly approved for:

• Government and military facilities

• Airports and transportation centers

• Hospitals and healthcare facilities

• Data centers and communication hubs

• Industrial plants with continuous production requirements

• Public safety infrastructure

• Critical commercial and utility facilities

Advantages

✔ Maximum power supply reliability

✔ Reduced risk of complete power outage

✔ Suitable for Class I and Class II critical loads

✔ Supports uninterrupted operation of essential equipment

What Is a Dual-Circuit Power Supply System?

A Dual-Circuit Power Supply System refers to a configuration where a load is supplied through two separate feeder circuits.

These circuits typically originate from:

• Different busbar sections of the same substation

• Two feeders supplied by the same transformer system

• Ring network distribution systems

When one circuit experiences a fault, the backup circuit can quickly take over the load.

Main Characteristics

• Two independent feeder circuits

• Power sources may or may not be independent

• Improved operational flexibility

• Lower cost compared to dual power supply systems

Typical Applications

Dual-circuit systems are widely used in:

• Schools and universities

• Office buildings

• Banks

• Commercial complexes

• Medium-sized industrial facilities

• Municipal infrastructure

Advantages

✔ Improved power continuity

✔ Easier maintenance and switching operations

✔ Cost-effective redundancy solution

✔ Suitable for secondary critical loads

Key Differences Between Dual Power Supply and Dual-Circuit Power Supply

1. Source of Power

Dual Power Supply

• Power comes from two independent sources.

• Failure of one source does not affect the availability of the other.

Dual-Circuit Power Supply

• Two circuits may originate from the same power source.

• A major fault at the source side can affect both circuits.

2. Reliability

Dual Power Supply

Provides a higher level of reliability because the power sources are electrically independent.

Dual-Circuit Power Supply

Provides circuit redundancy but may still be vulnerable to source-level failures.

3. Compliance with Power Supply Requirements

According to GB50052-2009 Code for Design of Electric Power Supply Systems, a dual power supply (also referred to as a “dual independent power source”) requires that the two power sources be mutually independent from a power supply reliability perspective.

A dual-circuit system does not necessarily meet this requirement if both circuits originate from the same source.

4. Application Level

Practical Example

Consider a hospital requiring uninterrupted operation of life-support equipment.

Dual Power Supply Solution

• Utility Substation A → Main Supply

• Utility Substation B → Backup Supply

• ATS automatically transfers power if one source fails

Even if an entire substation experiences an outage, the hospital remains powered.

Dual-Circuit Solution

• Two feeder circuits supplied from the same substation

• If one feeder fails, the other feeder supplies power

However, if the substation itself loses power, both circuits may become unavailable.

This example clearly illustrates why dual power supply systems offer superior reliability.

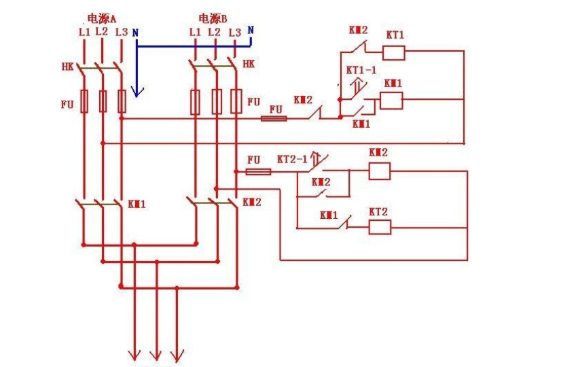

The Role of ATS in Dual Power Systems

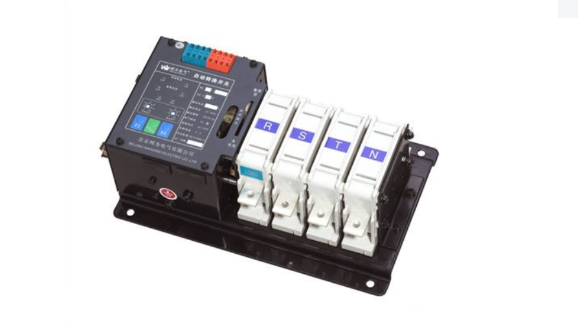

Modern electrical facilities often utilize an Automatic Transfer Switch (ATS) to manage switching between primary and backup power sources.

ATS equipment provides:

• Automatic fault detection

• Fast source transfer

• Minimal power interruption

• Enhanced operational safety

• Continuous power supply for critical equipment

BeiKe Electric provides customized ATS panels and integrated low-voltage switchgear solutions designed to meet international standards and project requirements.

While dual power supply and dual-circuit power supply systems both improve power supply continuity, they differ significantly in their source independence and reliability levels.

A dual power supply system uses two independent power sources and provides the highest level of power security, making it ideal for critical facilities where power interruption is unacceptable.

A dual-circuit power supply system utilizes two feeder circuits and offers a practical, cost-effective solution for applications requiring enhanced reliability but not full source redundancy.

When designing electrical distribution systems, engineers should carefully evaluate load importance, operational requirements, and investment costs to select the most suitable solution.

As a professional manufacturer of low-voltage switchgear, medium-voltage switchgear, ATS panels, and prefabricated substations, BeiKe Electric provides customized power distribution solutions that ensure safety, reliability, and operational continuity for industrial and commercial projects worldwide.
