In the realm of low-voltage switchgear, specifically the Schneider BlokSeT 5000 series, the busbar system is pivotal for efficient electrical distribution. With concerns about reliability, safety, and space optimization, understanding the busbar system design is essential. Users frequently seek clarity on specific design elements, material selection, and cooling strategies. This article provides five critical insights to enhance your understanding of busbar system design in BlokSeT 5000 low-voltage switchgear.
The busbar system serves as a backbone in power distribution within the BlokSeT 5000 low-voltage switchgear. It is integral for carrying large electrical currents and ensures conductivity and reliability.
A busbar is a conductive material, usually made of copper or aluminum, designed to distribute electric power to multiple circuits efficiently. This system minimizes electrical resistance and enhances the functionality of low-voltage switchgear.
When designing the busbar system for Schneider BlokSeT 5000, several principles must be followed to ensure optimal performance:
Busbars must withstand high electrical loads and environmental factors. The choice of materials plays a significant role in enhancing durability and maintaining system performance.
With space being a common constraint in facilities, the busbar system design should maximize space utilization while ensuring accessibility for maintenance.
A modular design allows for easy upgrades and adjustments, making it adaptable to changing power requirements over time.
The choice of materials is fundamental to busbar system performance. Key considerations include:
Materials with high electrical conductivity such as copper are preferred for busbars due to their efficiency in power transmission, reducing energy losses overall.
The ability of the material to dissipate heat effectively is critical, as it affects the thermal management of the switchgear system. Adequate thermal handling prevents overheating and system failure.
Choosing corrosion-resistant materials ensures longevity and reduces maintenance costs associated with deterioration over time.
Effective cooling strategies are vital in maintaining the performance and safety of the busbar system. Key elements include:
Implementing heat sinks or ensuring adequate airflow can assist in heat dissipation, maintaining temperatures within safe operational limits.
Understanding the ambient temperature where the switchgear operates is crucial for proper design. The integration of air conditioning units may be necessary in environments with high temperatures.
Safety is paramount in the design of busbar systems. Compliance with international standards, such as IEC and ANSI, ensures that the BlokSeT 5000 switchgear operates safely and effectively.
All designs should comply with local and international electrical safety regulations to protect users and equipment.
Routine inspections and maintenance of the busbar system can help identify potential issues before they escalate, ensuring long-term reliability.
In conclusion, the busbar system design in BlokSeT 5000 low-voltage switchgear encompasses multiple aspects that significantly affect its performance. By addressing material selection, cooling requirements, and safety compliance, manufacturers can enhance system reliability and efficiency. Whether you are a distributor or an end-user, understanding these dynamics will lead to more informed decisions regarding low-voltage switchgear integration within your operations.

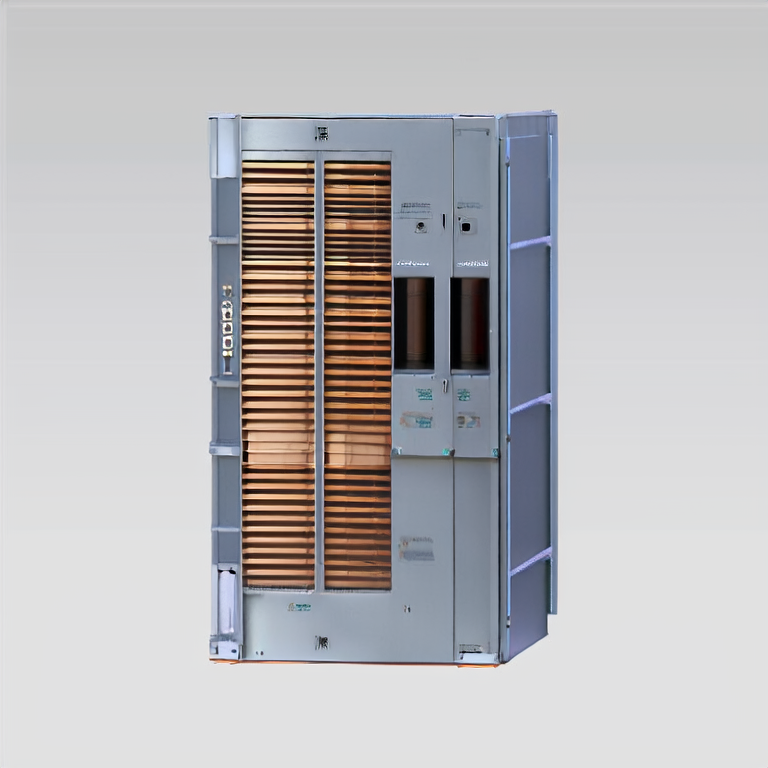

Beike's BlokSeT 5000 Low-Voltage Switchgear"/>
