Understanding the Difference Between Zero-sequence and Residual Current Transformers

    In electrical distribution systems, industrial power supply, and building low-voltage installations, two types of current transformers are commonly encountered: the Zero-sequence Current Transformer (ZCT) and the Residual Current Transformer (RCT). Although they look similar—both featuring a ring-shaped core—many electricians, whether beginners or experienced professionals, often confuse their functions, principles, and applications. This article clarifies the key differences so that you will never install or use them incorrectly.

Core Definition and Working Principle

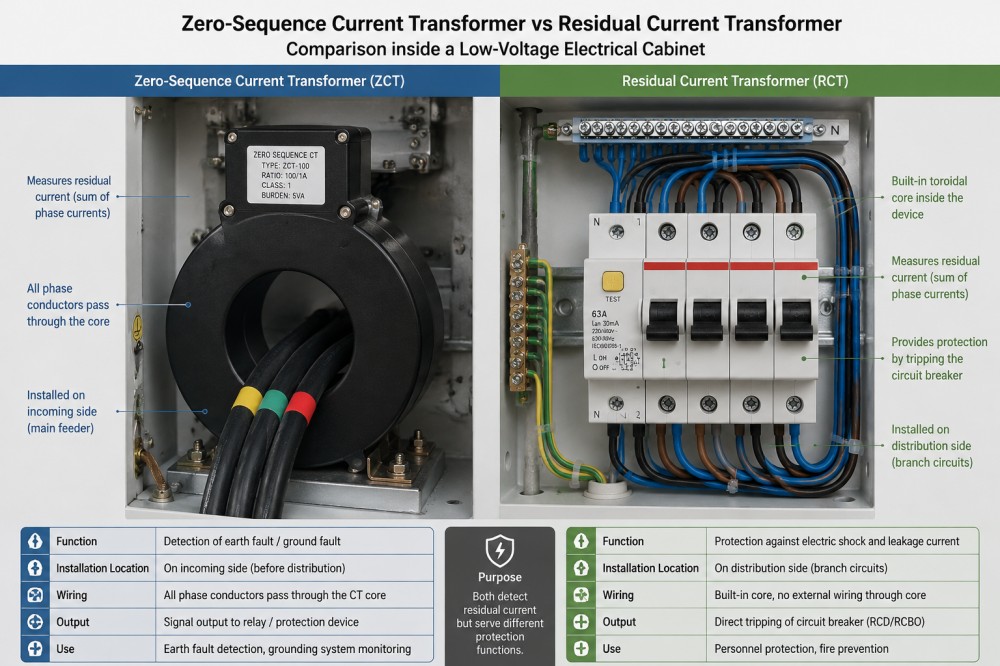

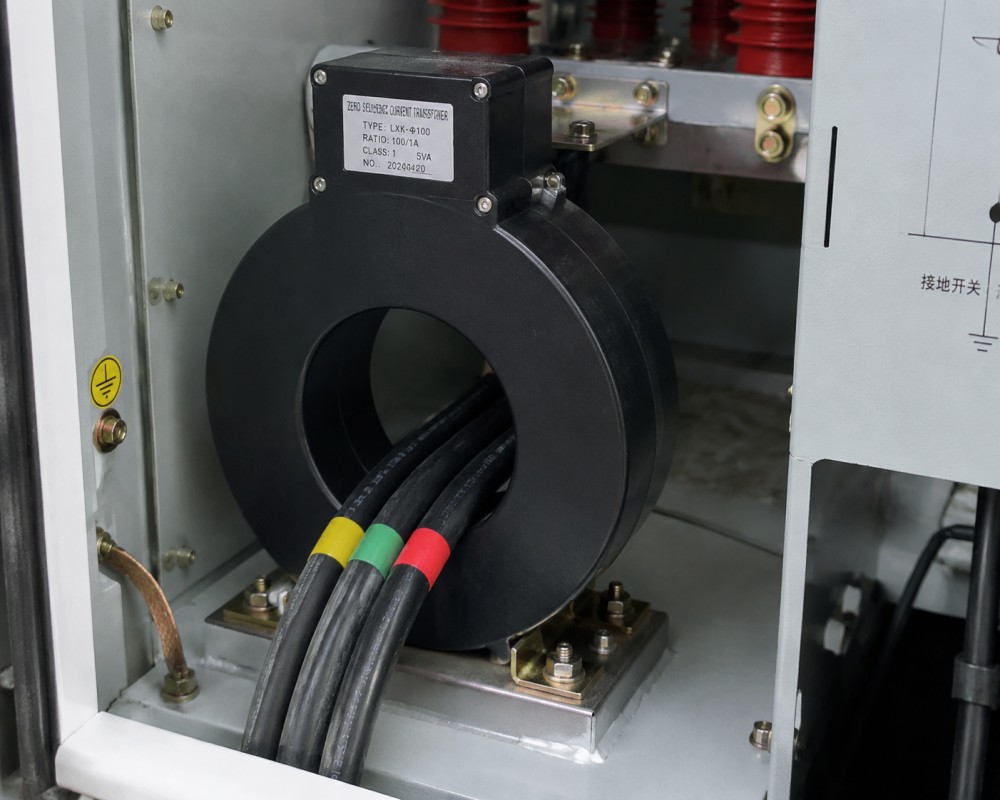

• Zero-sequence Current Transformer (ZCT): Primarily monitors the zero-sequence current of a three-phase system by summing the vectors of three-phase currents. Under normal balanced conditions, the sum is zero, and the transformer produces no output. In the event of a single-phase ground fault or insulation damage, the imbalance generates zero-sequence current, triggering protection devices for fault alarms or trips. ZCTs are suitable for high, medium, and low-voltage three-phase systems, focusing on grid grounding fault protection.

• Residual Current Transformer (RCT): Also known as leakage current transformers, these monitor residual current (leakage current). When live and neutral wires pass through the transformer, the currents cancel each other under normal operation. Leakage, caused by human contact, equipment failure, or aging lines, disrupts this balance, triggering alarms or protective devices. RCTs emphasize personal safety and fire prevention.

Application Scenarios and Voltage Levels

• ZCTs: Typically used in 0.4 kV and above high and medium-voltage systems, such as substations, industrial high-voltage cabinets, main distribution lines, and generator neutral grounding protection. They detect single-phase grounding faults and provide relay protection to ensure stable power supply.

• RCTs: Focused on low-voltage (380V/220V) residential and industrial circuits, including residential distribution rooms, commercial buildings, factory floor circuits, and home electrical safety systems. Their primary role is to prevent electric shocks and fire hazards.

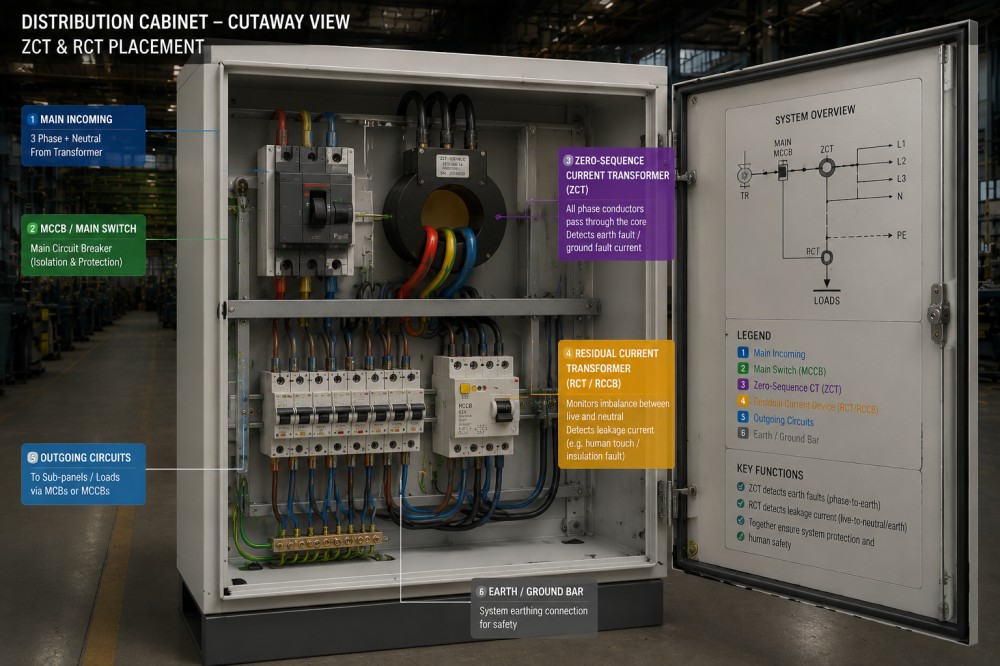

Wiring and Detection Differences

• ZCTs: Usually only pass the three-phase lines (sometimes only the neutral), detecting system imbalance and ground faults. Less sensitive to minor leakage currents, they respond mainly to serious grounding faults.

• RCTs: Require all phase and neutral lines to pass through, detecting milliamps-level leakage currents with high sensitivity, enabling instantaneous protection against electric shocks.

Protection Focus

• ZCT: Equipment and grid protection; higher threshold; ensures continuous power supply in industrial and mining environments.

• RCT: Human and fire protection; very low threshold; responds immediately to dangerous leakage, prioritizing safety over temporary power interruptions.

    ZCTs safeguard the power grid and equipment; RCTs protect people and prevent electrical fires. Although similar in appearance and principle, they differ in voltage compatibility, wiring, and protection goals. Selecting the right transformer for the correct scenario is critical for electrical safety and reliable operation.
