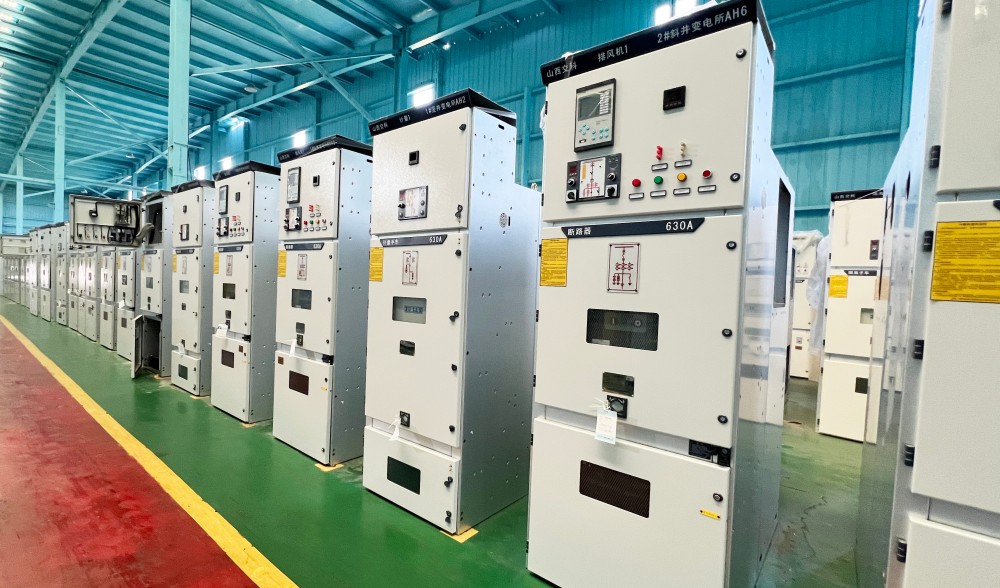

The Role of Metering Switchgear in Medium-Voltage Power Distribution Systems

Understanding the Function of Metering Cabinets in Electrical Networks

In modern medium-voltage power distribution systems, accurate energy measurement is essential for electricity billing, energy management, and regulatory compliance. One of the most important components responsible for this function is the Metering Board, often referred to as a Metering Switchgear Panel. Installed within medium-voltage switchgear assemblies, metering cabinets provide reliable measurement of electrical energy consumption while ensuring compliance with utility company requirements.

As power systems become increasingly intelligent and data-driven, metering cabinets play a critical role not only in energy billing but also in monitoring system performance and improving operational efficiency.

What Is a Metering Cabinet?

A metering cabinet is a dedicated compartment within a medium-voltage switchgear lineup specifically designed for electrical energy measurement. It houses precision measurement devices such as:

• Voltage Transformers (VT/PT)

• Current Transformers (CT)

• Multifunction Energy Meters

• Metering Terminal Blocks

• Sealing Devices and Anti-Tamper Components

These components work together to convert high-voltage and high-current signals into standardized low-level signals that can be safely measured by energy meters.

Unlike protection or feeder panels, a metering cabinet does not perform switching, protection, or load control functions. Its primary purpose is to provide accurate and secure energy measurement data for utility billing and energy management.

Key Functions of a Metering Cabinet

1. Accurate Electrical Energy Measurement

The most important function of a metering cabinet is precise energy metering.

Since medium-voltage systems operate at high voltages and currents, direct measurement is not practical. The metering cabinet utilizes:

• Current Transformers (CTs) to reduce large currents into standardized measurement values.

• Voltage Transformers (PTs/VTs) to reduce system voltage to safe levels.

These transformed signals are sent to multifunction energy meters that accurately calculate:

• Active Energy (kWh)

• Reactive Energy (kVARh)

• Apparent Energy (kVAh)

• Demand Consumption

The collected data serves as the official basis for electricity billing between power utilities and end users.

2. Compliance with Utility and Regulatory Requirements

Most power utilities require dedicated metering equipment that complies with national and regional metering standards.

Metering cabinets are specifically designed to:

• Provide independent metering circuits.

• Ensure measurement accuracy.

• Support official inspection procedures.

• Meet utility company specifications.

• Facilitate certification and commissioning processes.

In many countries, utility approval of the metering cabinet is a mandatory requirement before power can be officially connected and energized.

3. Real-Time Monitoring of Electrical Parameters

Modern digital energy meters provide far more than simple energy consumption data.

A metering cabinet can continuously monitor:

• Voltage

• Current

• Active Power

• Reactive Power

• Apparent Power

• Frequency

• Power Factor

• Energy Consumption Trends

These real-time measurements help facility managers and maintenance personnel understand power usage patterns, optimize energy efficiency, and quickly identify abnormal operating conditions.

4. Support for Energy Management Systems

With the adoption of Industry 4.0 and smart grid technologies, metering cabinets increasingly serve as data collection points for advanced monitoring systems.

Many modern metering solutions support communication protocols such as:

• Modbus RTU

• Modbus TCP/IP

• IEC 61850

• DNP3

This enables seamless integration with:

• SCADA Systems

• Building Management Systems (BMS)

• Energy Management Systems (EMS)

• Smart Grid Platforms

By providing real-time data, metering cabinets help organizations improve energy efficiency and reduce operational costs.

5. Anti-Tampering and Anti-Theft Protection

To ensure the integrity of billing data, metering cabinets incorporate multiple security features.

Typical anti-tampering measures include:

• Sealable cabinet doors

• Lockable metering compartments

• Sealed terminal blocks

• Dedicated metering wiring circuits

• Restricted access for unauthorized personnel

These measures prevent unauthorized modifications, electricity theft, and accidental interference with measurement circuits, ensuring accurate and trustworthy billing data.

6. Separation from Protection and Control Functions

A common misconception is that metering cabinets perform protection or switching functions.

In reality, metering cabinets are dedicated measurement devices and generally:

• Do not contain circuit breakers.

• Do not perform switching operations.

• Do not provide fault protection.

• Do not interrupt load currents.

Protection functions are typically handled by feeder panels, incoming panels, or protection relay cabinets within the switchgear system.

This separation improves system reliability and ensures metering accuracy is not affected by control operations.

Main Components of a Medium-Voltage Metering Board

A typical medium-voltage metering cabinet may include:

Each component is selected according to the voltage level, system capacity, and utility company requirements.

Applications of Metering Boards

Metering cabinets are widely used in:

• Industrial Manufacturing Plants

• Commercial Buildings

• Data Centers

• Hospitals

• Airports

• Renewable Energy Projects

• Utility Substations

• Mining Operations

• Infrastructure Projects

Any medium-voltage installation that requires accurate utility billing or energy monitoring will typically include a dedicated metering cabinet.

Benefits of Using a High-Quality Metering Board

Investing in a professionally designed metering cabinet offers several advantages:

✓ Accurate electricity billing

✓ Compliance with utility regulations

✓ Enhanced energy visibility

✓ Improved operational efficiency

✓ Reliable data collection

✓ Reduced risk of energy theft

✓ Easier maintenance and inspection

✓ Seamless integration with smart monitoring systems

The metering cabinet is a critical component of any medium-voltage power distribution system. Although it does not perform switching or protection functions, it plays an essential role in accurately measuring energy consumption, supporting utility billing, ensuring regulatory compliance, and providing valuable operational data.

As modern electrical systems become increasingly digital and energy-conscious, metering cabinets have evolved from simple billing devices into intelligent monitoring nodes that contribute to smarter, safer, and more efficient power management.

For industrial facilities, commercial buildings, and utility projects, selecting a reliable and standards-compliant metering cabinet is a key step toward achieving accurate energy measurement and long-term operational success.
