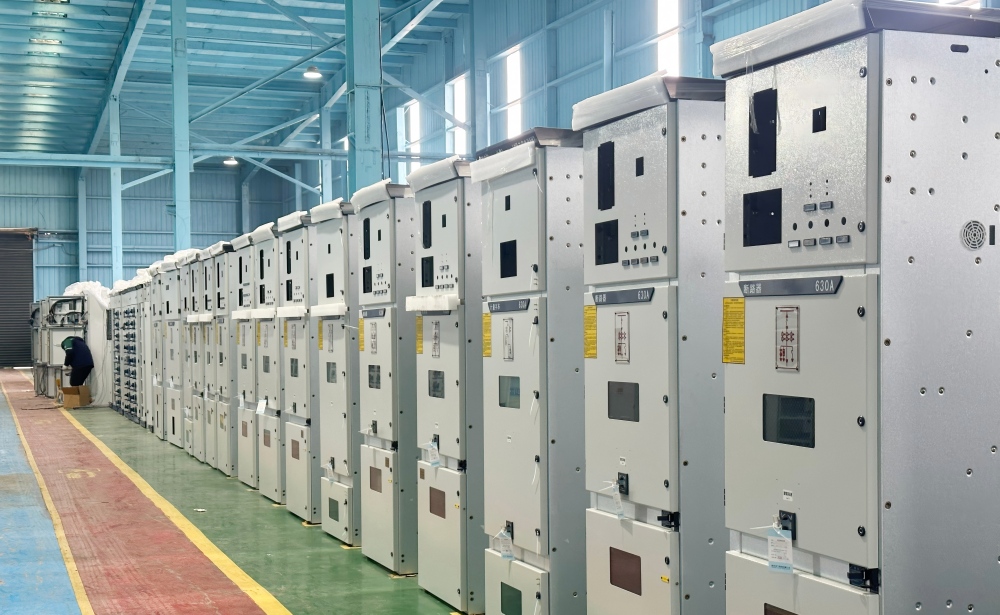

The Gateway to Power: Understanding the Central-Mounted (Withdrawal-type) Incoming Switchgear

    In any medium-voltage (MV) distribution system, the Incoming Switchgear Cabinet (often referred to as the KYN28 series or Central-Mounted Cabinet in international markets) serves as the "Primary Entry Point." It is the critical interface where high-voltage power from the utility grid or a main transformer enters the facility's distribution network.

    At BeiKe Electric (bkele.com), our withdrawal-type MV switchgear is engineered for reliability, safety, and seamless integration. Here is a technical breakdown of its vital roles in your electrical ecosystem.

1. Power Intake and Interconnection

    The primary function of the incoming cabinet is to receive external power (typically 10kV, 24kV, or 35kV) from the upstream substation or generator and deliver it to the main busbar system. It acts as the "Total Input," managing the full load of the downstream distribution network.

2. Advanced Circuit Control

    Equipped with high-performance Vacuum Circuit Breakers (VCB), the incoming cabinet allows for precise control over the power supply.

• Operational Flexibility: Supports both manual and motorized operations.

• Maintenance Ease: The "central-mounted" withdrawal design allows the VCB to be easily racked out for inspection, minimizing downtime during maintenance.

3. Comprehensive Protection System

    The incoming cabinet is the first line of defense. Integrated with sophisticated Microcomputer Protection Relays, it monitors the system 24/7 to prevent equipment damage and localized fires through:

• Overcurrent & Short-circuit Protection: Instantaneous tripping during faults.

• Zero-Sequence Protection: Detecting ground faults to ensure personnel safety.

• Over/Under Voltage Protection: Shielding sensitive equipment from grid fluctuations.

4. Precision Metering and Monitoring

    To manage a modern facility, you must measure its consumption. The incoming cabinet houses high-precision Current Transformers (CTs) and Potential Transformers (PTs) that feed real-time data to:

• Energy Meters: For accurate billing and power quality analysis.

• Monitoring Systems: Tracking voltage, current, power factor, and harmonic distortion to ensure optimal grid health.

5. Enhanced Safety and Isolation

    Safety is non-negotiable in high-voltage environments.

• Visible Isolation: When the VCB is moved to the "Test" or "Disconnected" position, it creates a physical isolation gap.

• Mechanical Interlocks: The "Five-Anti" interlock system prevents accidental operation (such as opening the door while energized or closing the earthing switch under load), adhering to strict IEC 62271 standards.

6. System Linkage and Redundancy

    In dual-source power systems, the incoming cabinet can be configured to work in tandem with a Bus-Tie (Bus-Link) Cabinet. This setup enables automatic or manual transfer between two power sources, ensuring that your facility remains operational even if one upstream source fails.

Why Choose BK Electric for Your Global Projects?

    Located in Taiyuan, Shanxi, our manufacturing facility combines decades of engineering expertise with global logistics capabilities. Our KYN28-series switchgear is designed to meet diverse international grid requirements, offering:

• Modular Design: Easy to expand as your power needs grow.

• Robust Construction: High-strength galvanized steel plates with multi-bend processes for maximum structural integrity.

• Global Compliance: Fully compliant with IEC and GB standards.

    Empower your infrastructure with the reliability of BK Electric. Explore our technical specifications at www.bkele.comor contact our sales engineers for a customized quote.
