A Guide to Professional Distribution Box and Cabinet Installation

In any industrial or residential electrical system, the Distribution Box (DB) or Switchgear panel serves as the central nervous system. Proper installation is not just a matter of operational efficiency; it is a critical factor in ensuring long-term system reliability and personnel safety.

At BeiKe Electric (bkele.com), we believe that high-quality products must be matched by high-quality installation. Below, our engineering team outlines the essential technical requirements and best practices for installing power distribution equipment.

1. Pre-Installation Environment Check

Before mounting any cabinet, the installation environment must be assessed against the equipment’s IP (Ingress Protection) rating.

• Dry & Ventilated: Ensure the room is free from moisture and corrosive gases.

• Space Requirements: Maintain adequate clearance around the cabinet—typically at least 800mm in front—to allow doors to open fully (at least 90° to 120°) for maintenance and emergency access.

• Structural Integrity: For wall-mounted boxes, ensure the wall can support the total weight plus the dynamic force of operating the switches.

2. Structural Mounting and Leveling

A baord that is not level can lead to mechanical stress on internal components and door misalignment.

• Vertical Accuracy: Use a spirit level or plumb bob to ensure the vertical deviation is less than 1.5mm per meter of height.

• Foundation Fixation: For floor-standing cabinets, use channel steel foundations. The cabinet should be bolted securely, not just welded, to allow for future adjustments or replacement.

• Clearance from Floor: It is recommended to install cabinets at least 200mm above the finished floor level to prevent damage from accidental flooding or floor cleaning.

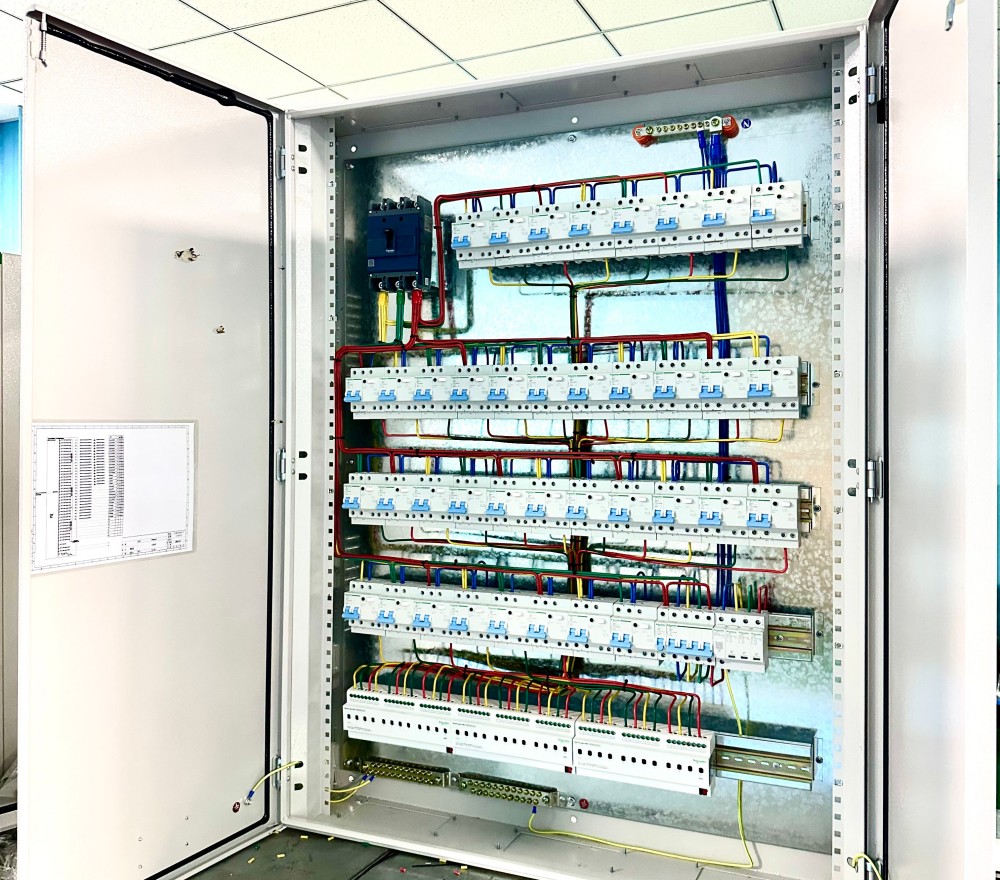

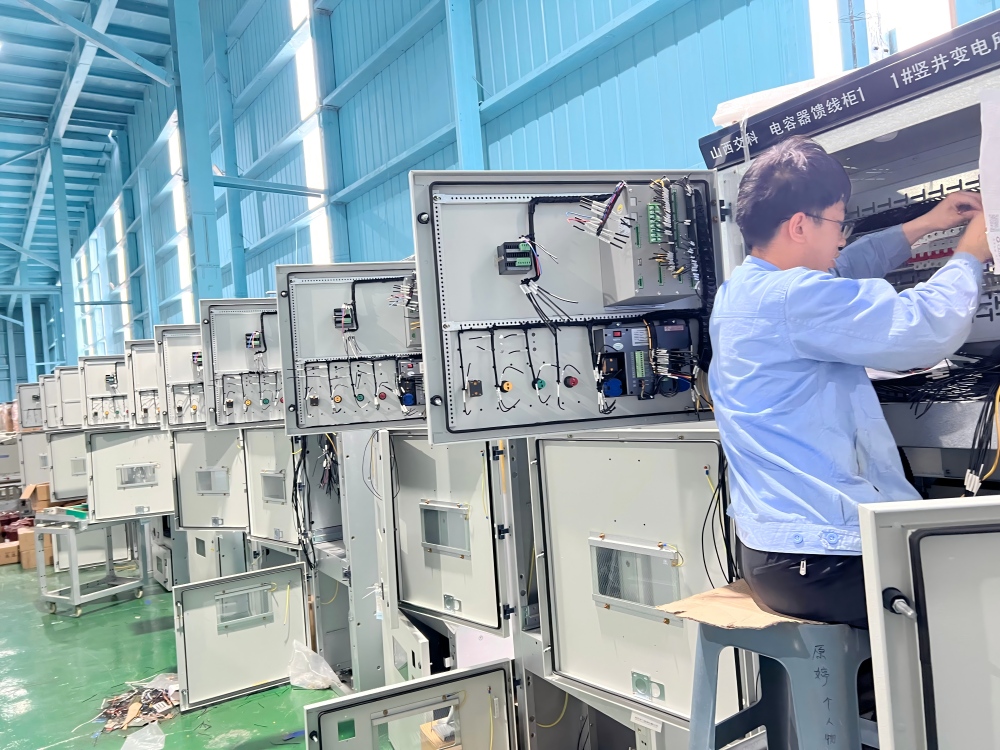

3. Wiring and Cable Management

The quality of the "internal veins" of the cabinet determines the risk of electrical fires and ease of troubleshooting.

• Standardized Coloring: Follow international standards (such as IEC 60445) for wire coloring:

• Phase L1/L2/L3: Brown/Black/Grey (or according to local national codes).

• Neutral (N): Blue.

• Protective Earth (PE): Green-and-Yellow.

• Termination Integrity: All cable lugs must be crimped with the correct tools and tightened to the specified torque. Loose connections are the leading cause of overheating in distribution boards.

• Bending Radius: Avoid sharp bends in cables, which can damage insulation and cause localized heating.

4. Grounding (Earthing) and Safety

Grounding is the most critical safety step. A distribution box without a reliable ground is a life-threatening hazard.

• Reliable Bonding: The cabinet door and the main body must be connected via a flexible copper braided strap to ensure continuity, even if the hinges become corroded.

• Neutral and Earth Separation: In TN-S systems, ensure that the Neutral (N) and Earth (PE) bars are strictly separated and never bridged within the distribution box.

5. Labeling and Documentation

A professional installation is one that can be understood by any qualified electrician who follows.

• Circuit Directories: Every breaker must have a clear, durable label indicating exactly which load it controls.

• Schematic Pocket: Always keep a copy of the final "As-Built" wiring diagram inside the door's document pocket.

• Warning Signs: High-voltage warning stickers must be visible on the exterior of the cabinet.

6. Post-Installation Testing (Commissioning)

Before energizing the system, perform the following "Cold Tests":

• Insulation Resistance Test: Ensure there are no short circuits to the ground or between phases.

• Mechanical Operation: Toggle all switches, breakers, and interlocks to ensure smooth mechanical movement.

• Torque Verification: Double-check the tightness of all main busbar connections.

• Conclusion: Quality Beyond the Box

At Beike Electric, we don't just manufacture enclosures; we provide the foundation for a safe electrical future. Following these installation guidelines will extend the life of your equipment and protect your most valuable assets—your people.
