Medium Voltage Distribution Cabinet
The XGND-12 series fully insulated and fully enclosed ring network switchgear is SF6 gas insulated metal common box enclosed switchgear, which can be composed of load switch unit, load switch fuse combination electrical unit, vacuum circuit breaker unit, busbar feeder unit and other modules. It adopts a series of advanced technologies and materials. With excellent electrical and mechanical properties, small influence by the environment and weather, compact size, easy to install, easy to operate, no maintenance, and has a flexible combination. Clear and intuitive design ensures simple and direct operation. The feeder wiring capacity is large, suitable for a variety of wiring systems.
Portfolio
Voltage level(kV)
Fully insulated and switchgear
Enterprise code
1. Operational safety. We can provide special security for our users through the following safety measures.
◆ Integratedthree-positionload switch
◆ Circuit breaker adopts load switch instead of disconnecting switch,which is safer and more reliable.
◆ The primary side is fully enclosed to provide protection from accidental contact.
◆ Mechanical interlocks that meet the requirements of the five defenses
◆ The power-carrying display can provide the indication of the power-carrying of the incoming and outgoing lines.
2. Reliable operation. Fully enclosed design, all 10kV switch and bus charged body are sealed in the 3mm stainless steel plate welded into the air box; with silicone rubber cable plugs, to achieve the cable head fully insulated and fully sealed so as not to be dusty.
External environmental influences such as dust, humidity, small animals.
◆Spring energy storage operating mechanism, can be manually or electrically operated
◆Panel molded line drawing provides switch position indication
◆The cabinet is made of galvanized sheet metal with electrostatic spraying on the surface to enhance corrosion resistance.
◆Pressure gauge monitors the safe pressure range of SF6 gas inside the tank.
3.Economy.
◆Maintenance-free
◆Highly reliable
◆Life expectancy up to 20years
4. Program flexibility
◆Multiple wire feeding methods, can realize left, right, up or forward wires.
◆Multiple combination methods, each unit can realize any combination between the
◆Insulated busbar, can realize the front and back of the cabinet or left and right of the cabinet.
◆Flexible design options.
◆Spring mechanism and permanent magnet mechanism optional configuration.
Sports event | Unit(of measure) | Module C load switch unit | Module F Load switch-fusecombination electrical unit | V-Module CircuitBreaker Unit | |
| Rated voltage | kV | 12 | 12 | 12 | |
| Rated current | A | 630 | 125 Note 1 | 630 | |
| Frequency withstand voltage/1min | Phase earth/phase | kV | 42 | 42 | 42 |
| Breakout | kV | 48 | 48 | 48 | |
| Impact voltage | Phase earth/phase | kV | 75 | 75 | |
| Breakout | kV | 85 | 85 | ||
| Rated closed loop breaking current | A | 630 | |||
| Rated cable charging and breaking current | A | 30 | |||
| Rated breaking inductive current | A | Note2 | |||
| Rated short-time withstand current/3S | kA | 20 | 20 | ||
| Rated peak withstand current | kA | 50 | 1700 | 50 | |
| Rated short-circuit closing current | A | Note 3 | |||
| Rated short-circuit breaking current | kA | 20 | |||
| Rated short-circuit closing current | kA | 50 | |||
| Rated short-circuit breaking | Times | 30 | |||
| Rated short-circuit closure (load switch/earth switch) | Times | 5/5 | |||
| Rated current breaking | Times | >100 | |||
| Number of mechanical operations(load switch/ earth switch) | Times | 5000/2000 | 5000/2000 | 30000 | |
Note
1.depending on the fuse rated current value;
2.open 1250KVA no-load transformer;
3.depending on the high-voltage fuse.

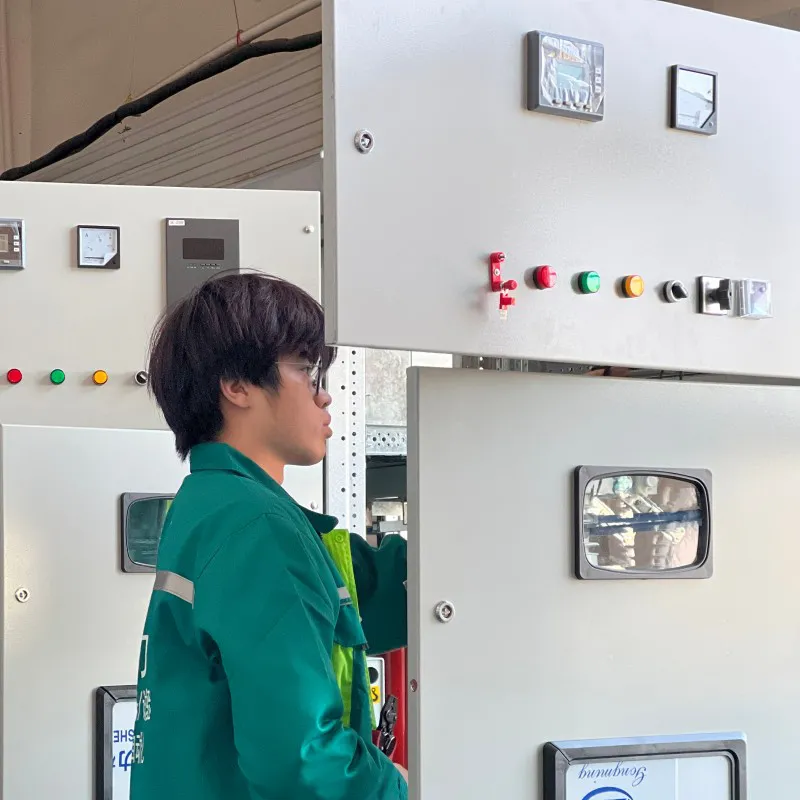

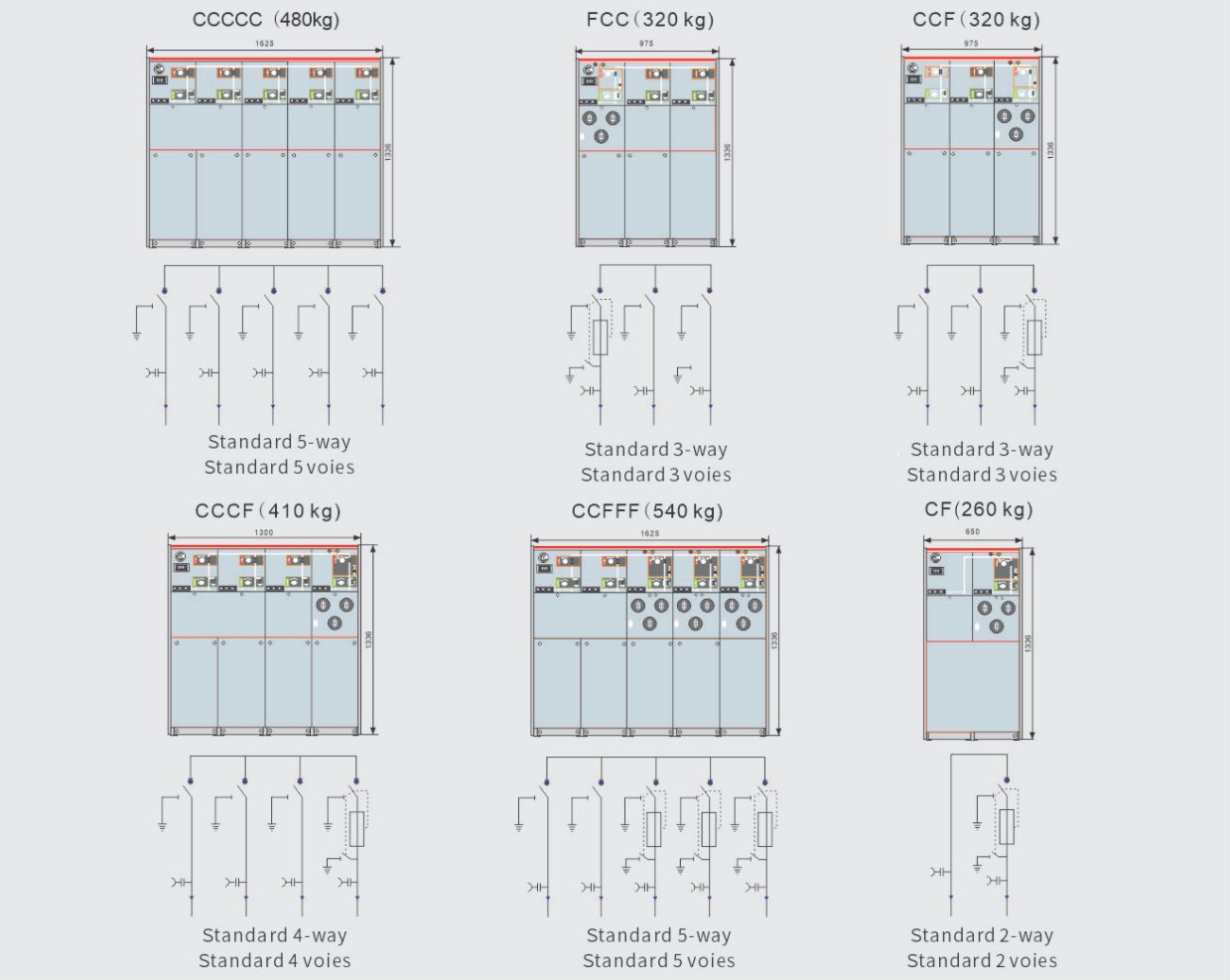

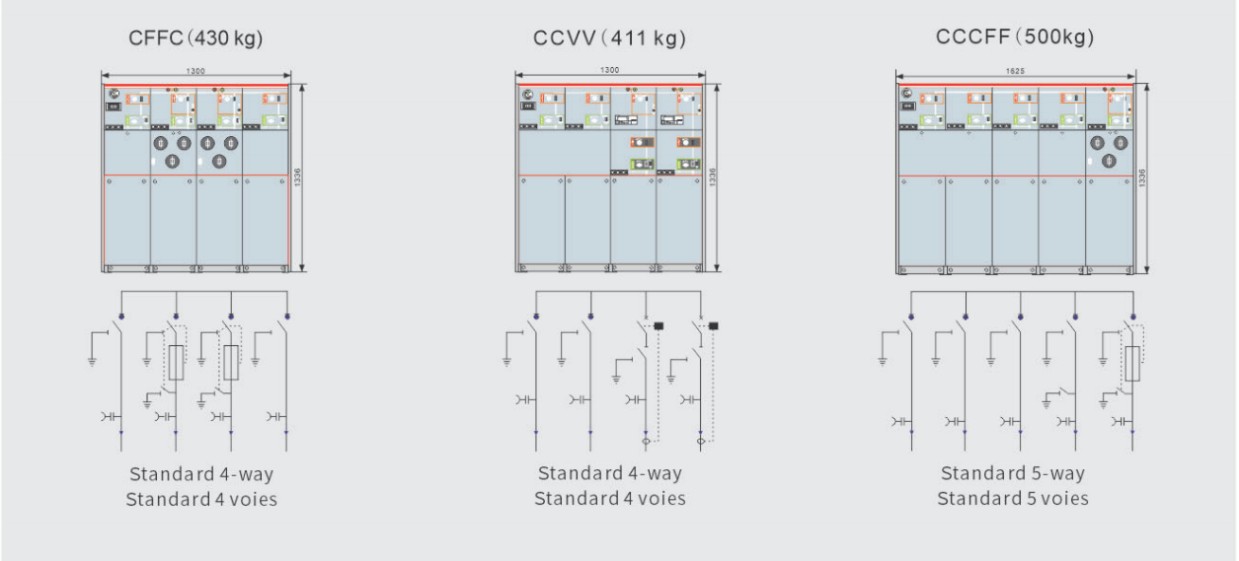

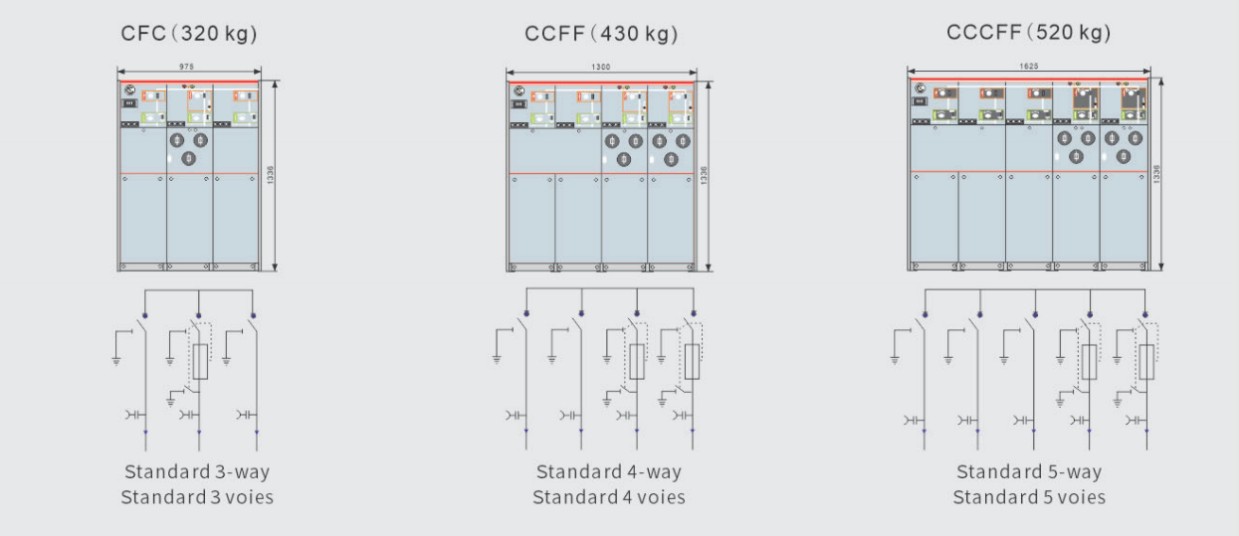

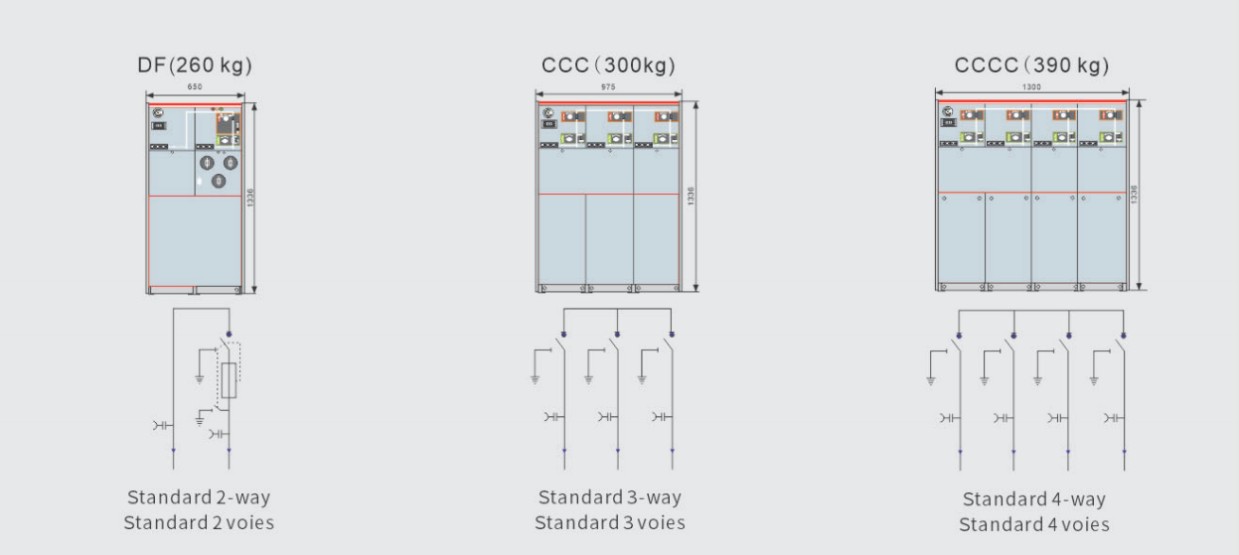

A total of fifteen standardized combinations are available as follows
XGN□-12 all kinds of non-expansion standard combination unit cabinet of each module with the following configuration
◆Cabinet D-Lifting Module
Standard configuration and features in the "Cable connection module without grounding knife".
◆Cabinet C a load switch module
Standard configuration and characteristics in the "Load switch module".
◆Cabinet F a load switch fuse combination electric cross block
Standard configuration and characterstics in the "Module of load switch fuse combinations".
◆V cabinet a vacuum switch cross block
Standard configuration and characteristics in the "Vacuum switching module".
◆Capacitive voltage indicator for incoming bushings.
◆Installation of a pressure gauge to monitor SF6 density in each gas chamber
◆Lifting lugs
◆operating handle
◆optional
Motorized operating mechanism
Cable Short Circuit and Ground Fault indicator
Current transformers and meters
Remote monitoring and connectivity
