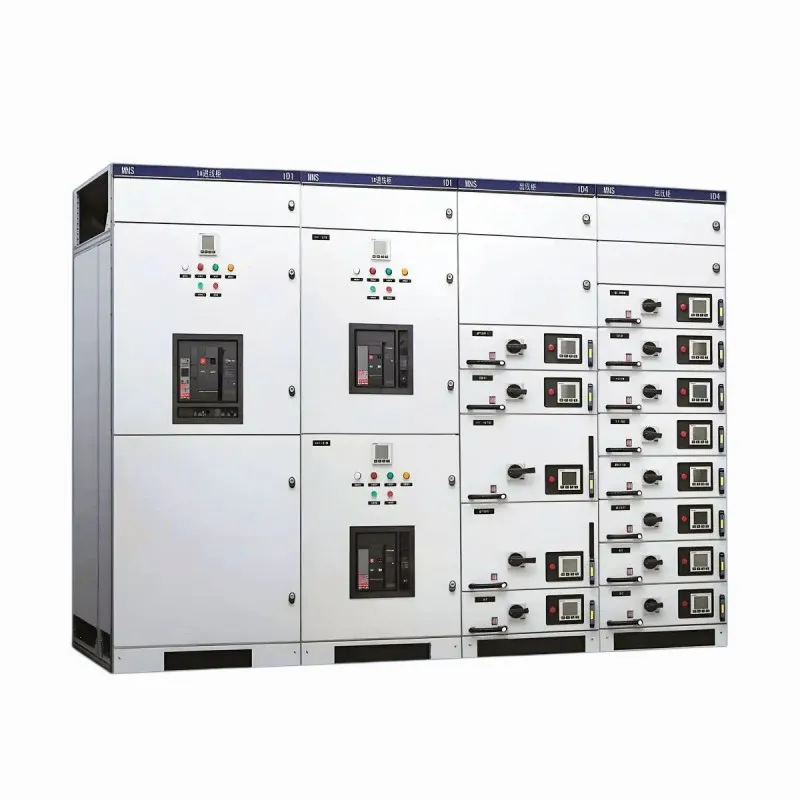

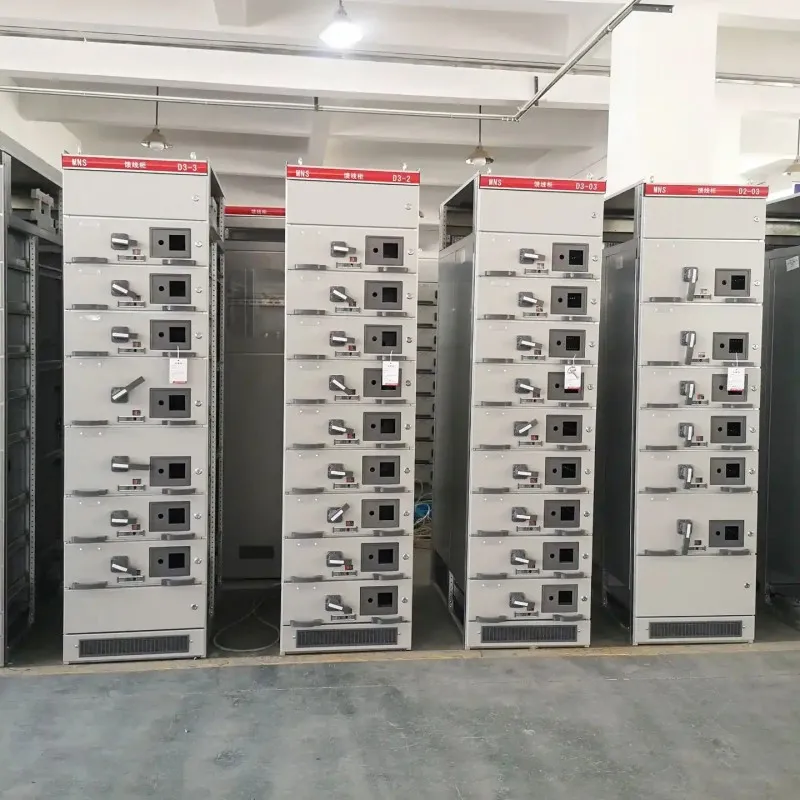

MNS low-voltage withdrawable switchgear (hereinafter referred to as the device) is a product manufactured with standard molds with reference to the MNS series of low-voltage switchgear of ABB Company of Switzerland and comprehensively improved. This device is suitable for AC 50Hz, rated working voltage 660V and the following systems. As a variety of power generation, transmission, distribution, power conversion and power consumption equipment control equipment, can be widely used in various industrial and mining enterprises, buildings and hotels, municipal construction and other low-voltage power distribution system. In addition to general land use, after special treatment, it can also be used in offshore oil drilling platforms and nuclear power plants.
The device conforms to international standard IEC439-1 and national standard GB7251.1.
Structural Characteristics
1. Compact design: more functional units can be accommodated in a smaller space.
2. Strong structural versatility, flexible assembly, with 25mm as the modulus of the C profile can meet the requirements of various structural type, protection level, use of the environment.
3. Standard module design: can be composed of protection, operation, conversion, control, regulation, measurement, indication and other standard units. The user can choose and assemble according to the needs, and more than 200 kinds of parts can be composed of different cabinet structure and drawer unit.
4. Good installation: a large number of high-strength flame-retardant engineering plastic components, effectively strengthen the protective safety performance.
5. High technical performance: the main parameters have reached the domestic advanced level.
Rated working voltage (V) | Rated insulationvoltage(V) | Rated operating current(A) | Rated short-time withstand current RMS(IS)/Peak(kA) | Case protection class | ||
Horizontal busbar | vertical busbar | Horizontal busbar | vertical busbar | Outline dimension H*W*D | ||
380、660 | 660、1000 | 630-5000 | 800-2000 | 50-100/105-250 | 60/130-150 | 2200×600(800、1000)×800(1000) |
Vertical busbar rated operating current:
800A for pull-out MCC for single or double-sided operation, 800-2000A for single-sided operation with a cabinet depth of 1000mm.
Structural Characteristics
The basic cabinet frame of the device is a combined assembly structure, the basic structural parts of the cabinet frame are galvanized, through the self-tapping locking screws or 8.8 square angle screws to fasten each other into the basic cabinet frame, and then according to the program change needs, plus the corresponding door,sealing plate, partition, mounting bracket, as well as the busbar, functional units and other components, assembled into a complete device. The dimensions of the parts in the device and the compartment dimensions are modularized (modular unit e=25mm).

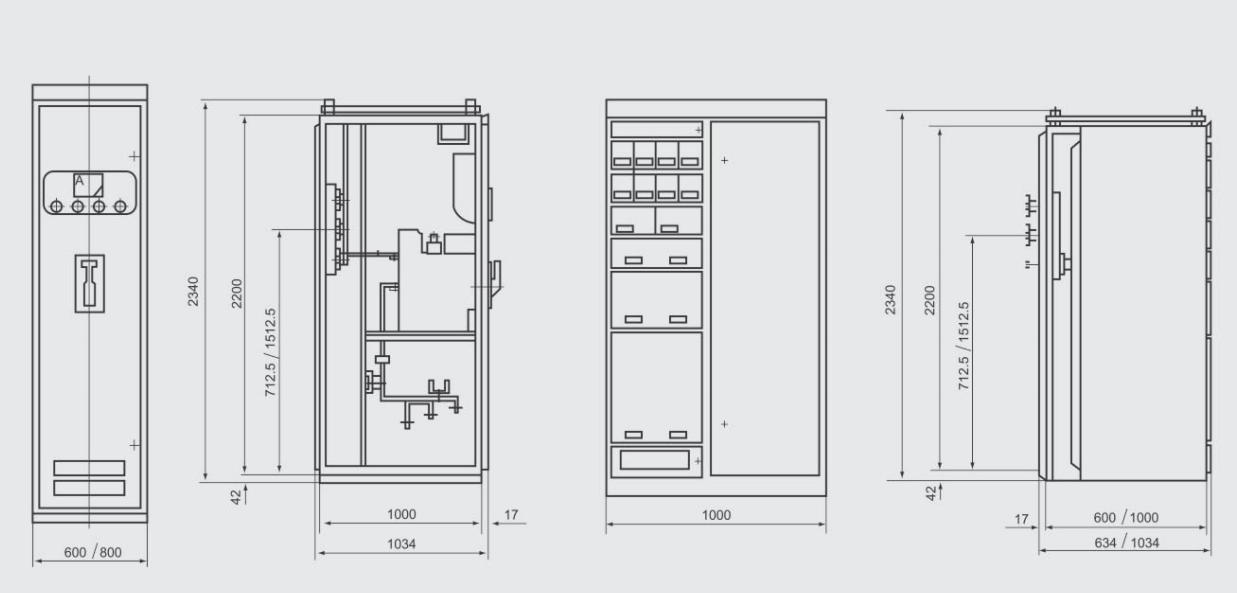

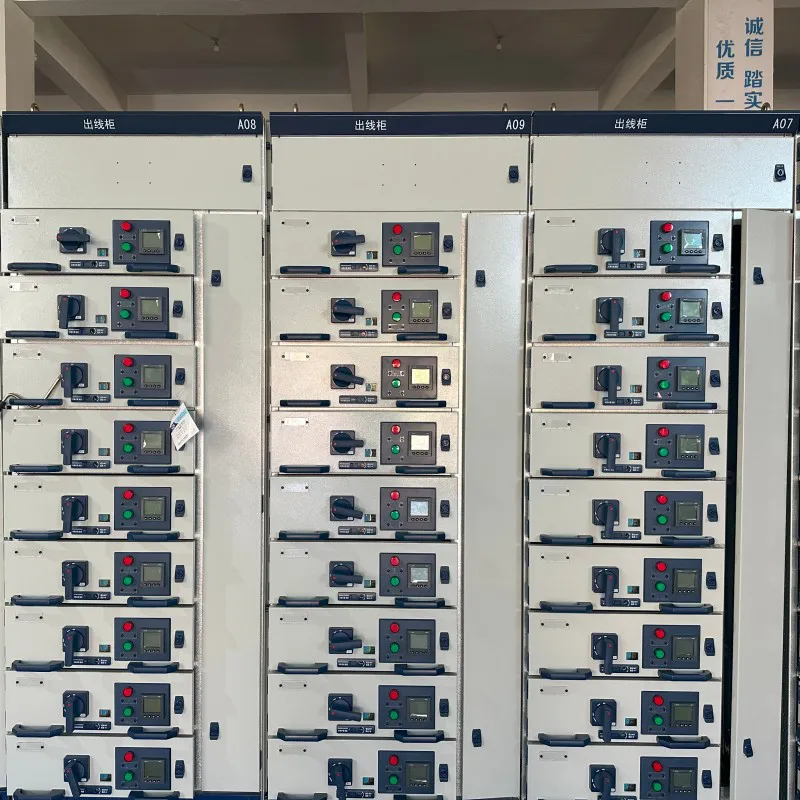

Internal Composition
PC cabinet Pull-out MCC cabinet (single-sided operation)

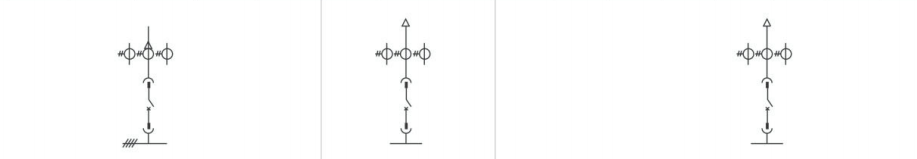

Primary Circuit Diagram
Program No. | 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 |
One program | ![]() | ||||||||||||||||||
Cabinet width(mm) | 400 | 600 | 800 | 1000 | 600 | 800 | 1000 | 600 | 800 | 1000 | 600 | 800 | 1000 | 600 | 800 | 1000 | 600 | 800 | 1000 |
Equipment room height | 72E | 72E | 72E | 72E | 72E | 72E | 72E | 72E | 72E | 72E | 72E | ||||||||
Maximum operating current(A) | 1500 | 1500 | 2300 | 3150 | 1500 | 3200 | 4000 | 1600 | 3200 | 4000 | 2000 | 3200 | 4000 | 2000 | 3000 | 3600 | 1500 | 3200 | 4000 |
Major equipment | ME1605 F1-1600 M16BHG-60II | ME630~ME637~ME1605BHG-100 | ME2000~ME2505ME2505BHG-100 | ME3200~ ME3205 BHG-12011 | AH-6B~ AH-16B BHG-100 | AH-20CH~ AH30CH BHG-100 | AH-40C BHG-12II | MO8~M16BHG-100 | M20M32BHG-100 | M40BHG-120II | F1-1250~F1-2000 BHG-100 | F2-2000~F4-3200BHG-100 | F5-4000 BHG-120 | F1-1250~F1-2000 InterrupteurLV.4BHG-100 | F2-2000 F2-3000F3-3200InterrupteurLV.4BHG-100 | F4-3200F4-3600 InterrupteurLV.4BHG-120II | AH6B AH16B InterrupteurLV.4BHG-60II | M28 M32InterrupteurLV.4BHG-100 | M40InterrupteurLV.4BHG-120II |
Use | Usage Incoming or outgoing cables |
Program No. | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | 35 | 36 | 37 | 38 |
One program | |||||||||||||||||||
Cabinet width(mm) | 400/600 | 800 | 1000 | 400/600 | 800 | 1000 | 600 | 800 | 1000 | 600 | 800 | 1000 | 600 | 800 | 1000 | 600 | 800 | 1000 | |
Equipment room height | 72E | 72E | 72E | 72E | 72E | 72E | 72E | 72E | 72E | 72E | 72E | ||||||||
Maximum operating current(A) | 1500 | 2300 | 3150 | 1500 | 3000 | 4000 | 1600 | 3200 | 4000 | 2000 | 3200 | 4000 | 2000 | 3200 | 3600 | 3200 | 4000 | ||
Major equipment | ME630 ME-1605 M16BHG-60II | ME2000~ME2505~BHG-100 | ME3200~3205BHG-120 | AH6B~AH-16B BHG-100 | AH20CH~ AH-30CH BHG-120II | AH40CH BHG-120 | AH-40C BHG-120II | MO8~M16BHG-100 | M20M32BHG-120II | F1-1250~F1-2000 BHG-100 | F2-2000~F4-3200BHG-100 | F5-4000 BHG-120 | F1-1250~F1-2000 InterrupteurLV.4BHG-100 | F2-2000 F2-3000F3-3200InterrupteurLV.4BHG-100 | F4-3200F4-3600 InterrupteurLV.4BHG-120II | M08~M32InterrupteurLV.4BHG-120II | M40InterrupteurLV.4BHG-120 | ||
Use | Usage Incoming or outgoing cables |
