Low Voltage Switchgear & Distribution Panels

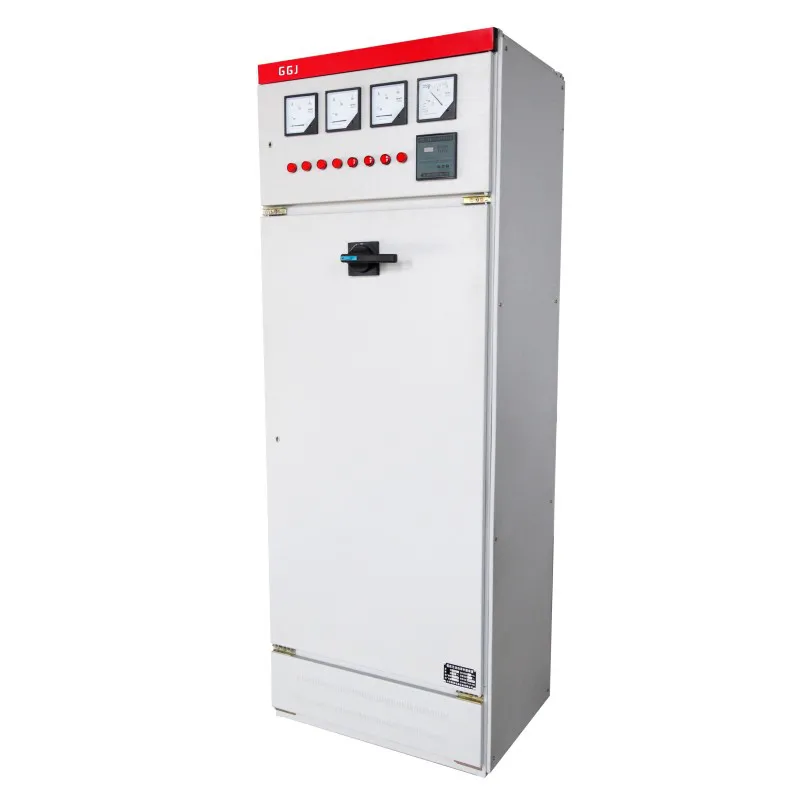

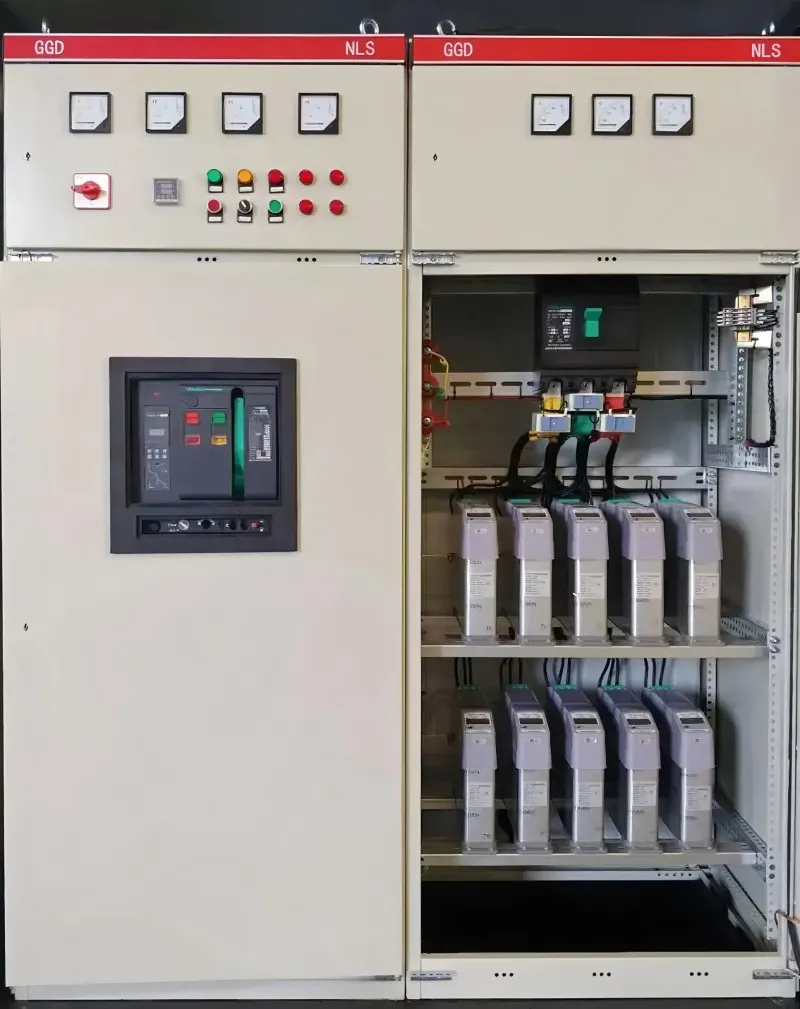

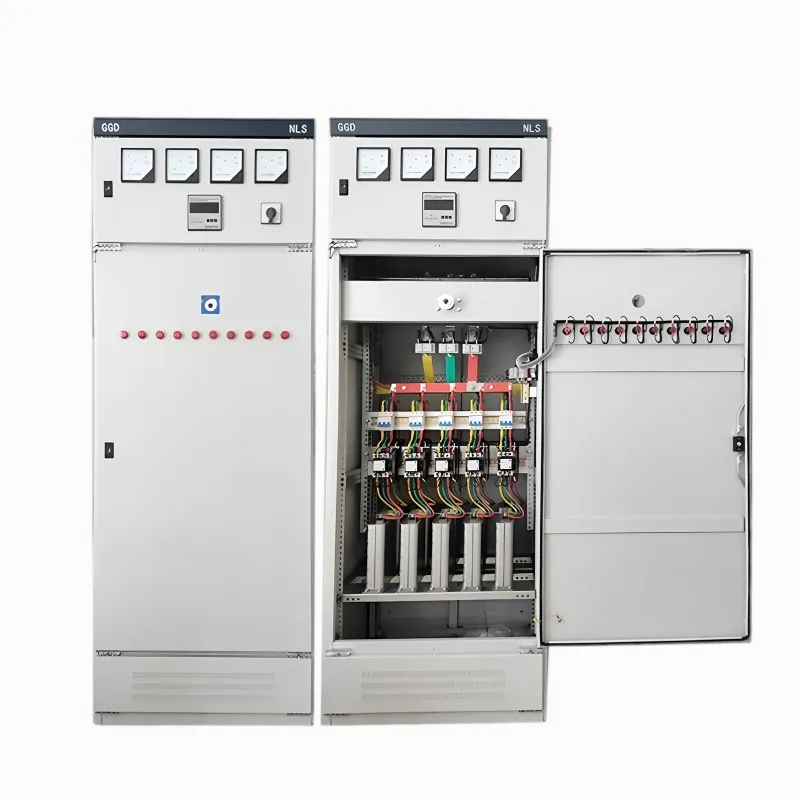

The GGJ Low Voltage Reactive Power Compensation Cabinet is specifically designed for low-voltage distribution systems as a reactive power compensation device. It effectively improves grid power factor, reduces line losses, and stabilizes voltage quality through intelligent switching of capacitor banks, thereby enhancing power supply efficiency and quality. This product is widely used in various scenarios requiring reactive power compensation and is a key equipment for energy management and energy saving.
Detailed Technical Specifications
Parameter Category | Technical Specifications |
Rated Electrical Characteristics | Rated Voltage: 380V AC Three-phase |
Compensation Capacity | Compensation Capacity Range: 60kvar to 420kvar |
Switching Performance | Fastest Response Time: ≤20ms Fuzzy logic automatic switching |
Structural Specifications | Cabinet Height: 2000mm, 2200mm |
Short-circuit Performance | Rated Short-time Withstand Current: 15kA (Some models up to 50kA) |
Compliance Standards | IEC 439-1, GB7251.1-2005, GB/T 15576-2008 |
Key Product Features
1.Efficient Compensation and Energy Saving
Uses self-healing metallized parallel capacitors, which are compact, lightweight, high-capacity, reliable, and feature internal protection devices. Effectively improves power factor to above 0.95 and reduces reactive losses by over 60%.
Adopts a combination of three-phase compensation and single-phase compensation for more precise reactive power compensation, adapting to different load requirements.
Fast response (≤20ms) to grid changes, automatically switching capacitors in real-time to stabilize grid voltage and reduce system and transformer losses.
2.Intelligent Control and Protection

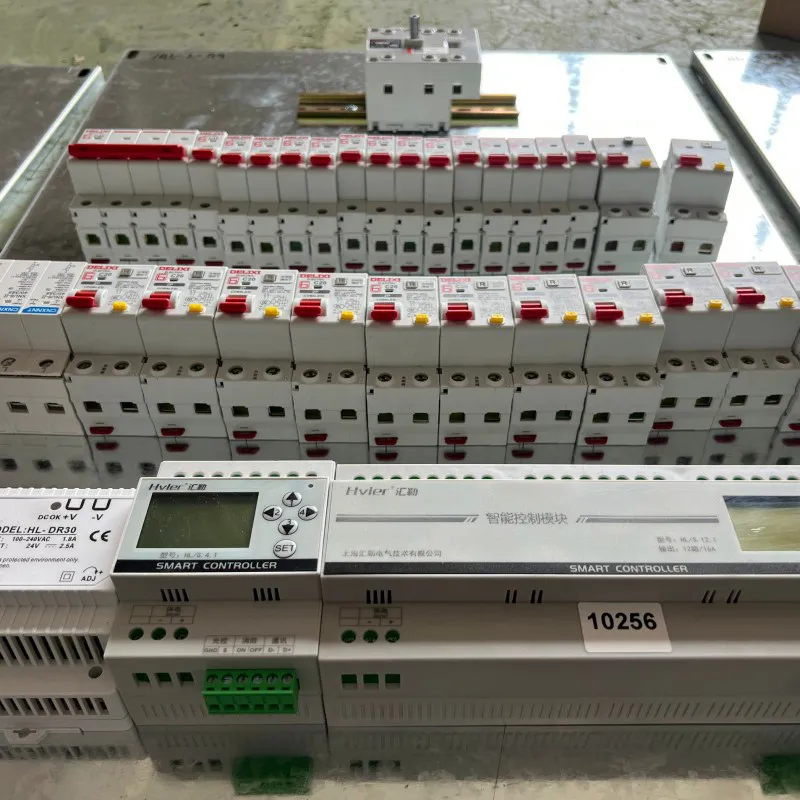

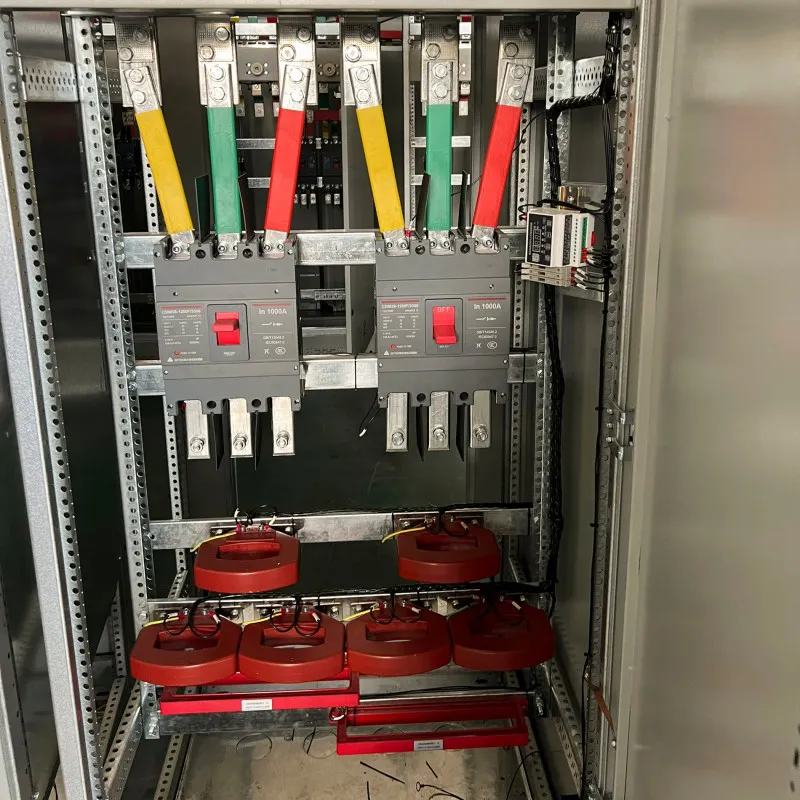

Equipped with an intelligent reactive power compensation controller supporting various modes like cyclic switching, code switching, and fuzzy logic automatic switching for precise compensation.
Features a self-discharge function, reducing residual voltage to below 50V within 1 minute after power off, ensuring maintenance safety.
Comprehensive electrical protection, including short-circuit, overcurrent, overvoltage, undervoltage protection mechanisms, ensures long-term stable operation.
3.Structural Design and Safety
The cabinet adopts a closed structure with a protection degree of IP30, effectively preventing foreign object intrusion. Higher protection levels (e.g., IP41 for dust and moisture resistance) are available based on the operating environment.
Designed in compliance with international and national standards such as IEC 439-1, GB7251.1, and GB/T15576, guaranteeing product safety and reliability.
Rational component layout facilitates easy installation, debugging, maintenance, and inspection.
4.Broad Application Adaptability
Suitable for low-voltage distribution systems in substations, factories, industrial and mining enterprises, large power plants, petrochemical industries, large steel plants, high-rise building power centers, and other occasions.
Capable of adapting to various environmental conditions: Ambient temperature -40°C to +50°C, Relative air humidity ≤95% (at +20°C), Altitude ≤2000 meters.
Typical Applications
Industrial Manufacturing: Reactive power compensation for power distribution centers in metallurgical, chemical, mining, and machinery plants.
Commercial Buildings: Energy-saving retrofits for power centers in high-rise buildings, large shopping malls, hospitals, and airports.
Energy Infrastructure: Reactive power optimization for auxiliary power systems in substations and power plants.
Public Utilities: Energy efficiency improvement for power distribution systems in water treatment plants and municipal facilities.
Optional Configurations
Basic Type: Standard reactive power compensation for general industrial applications.
Intelligent Type: Enhanced intelligent controller supporting more complex compensation strategies and communication functions.
Moisture & Dust Proof Type: Higher protection degree (e.g., IP41, IP65) for harsh environments.
Customized Type: Tailored to specific customer requirements (e.g., capacity, cabinet dimensions, special protection).
1. What is the primary function of the GGJ Intelligent Compensation Device?
The GGJ device is designed for Automatic Power Factor Correction (APFC) in low-voltage distribution systems. By automatically switching capacitor banks in and out based on real-time load, it improves the power factor (PF) to 0.95 or higher, reduces reactive power penalties from utilities, and increases the overall efficiency of your electrical infrastructure.
2. How does the "Intelligent" controller optimize compensation?
Our GGJ units feature a micro-processor-based APFC controller. It monitors parameters like voltage, current, and harmonics in real-time. It uses advanced logic (such as cyclic or linear switching) to ensure even wear on capacitors and prevents "hunting" (rapid cycling), extending the lifespan of the entire system.
3. Does the GGJ panel provide protection against harmonics?

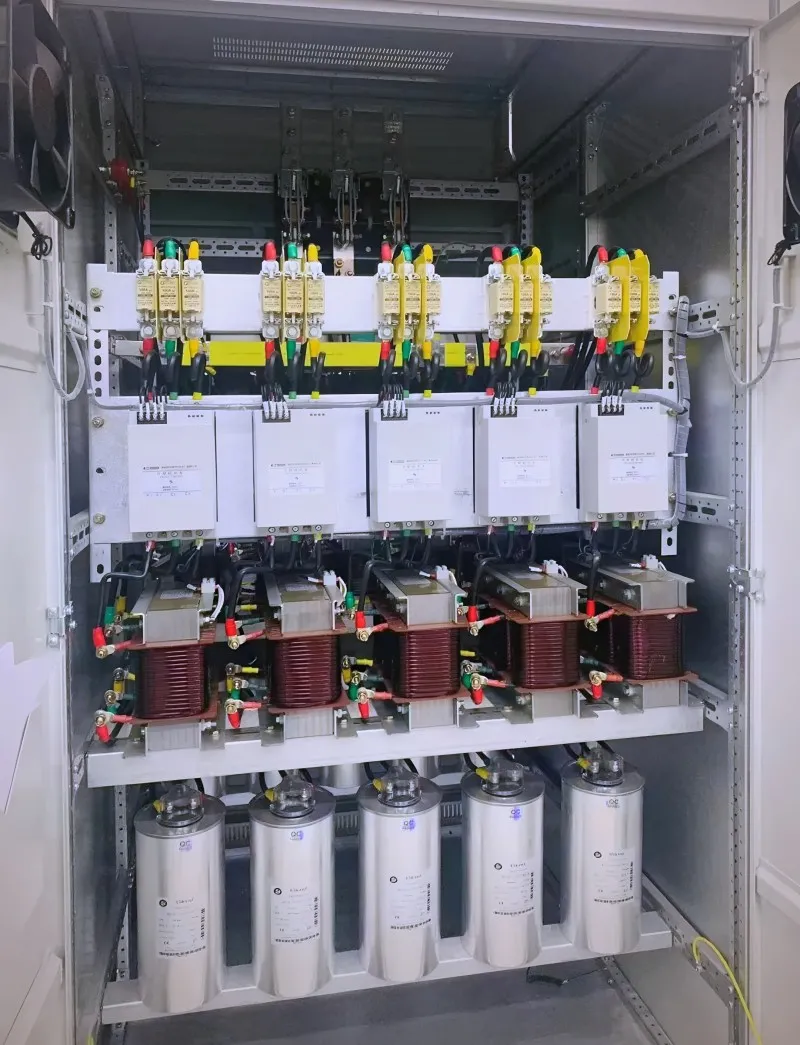

Yes. In environments with non-linear loads (like VFDs or LED lighting), harmonics can overheat capacitors. We offer Detuned GGJ solutions integrated with 7% or 14% reactors to suppress harmonic resonance and protect the capacitors from premature failure.
4. What types of capacitors are used in the GGJ series?
We use high-quality self-healing dry-type power shunt capacitors. Each unit features an internal overpressure disconnector and discharge resistors. In the event of a fault, the capacitor safely disconnects itself from the circuit, preventing fire or explosion risks.

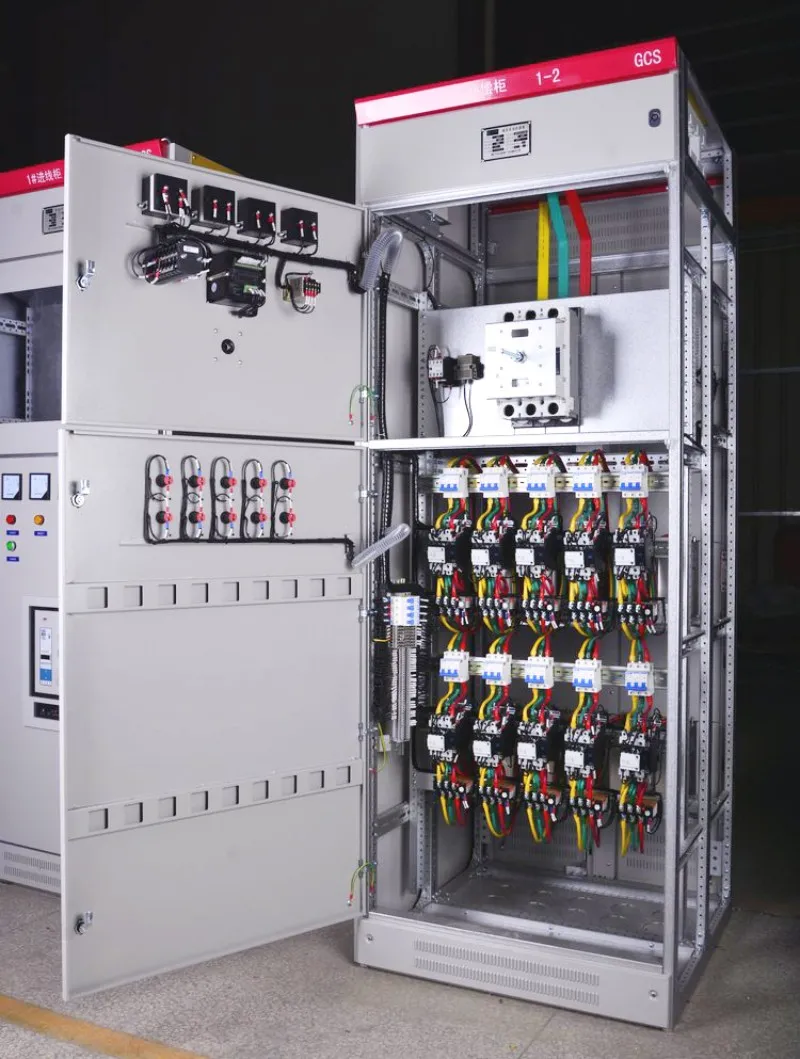

5. What are the switching options: Contactors or Thyristors?
We offer both:
Specialized Contactors: Cost-effective for stable loads, equipped with pre-charge resistors to suppress inrush current.
Thyristor Switches (Static Switching): Ideal for rapidly changing loads (e.g., welding or elevators). They provide zero-crossing switching, which is spark-free and instantaneous.
6. How does the GGJ handle heat dissipation?
Capacitors are sensitive to heat. Our GGJ cabinets from the Shanxi factory are designed with thermostat-controlled forced-air cooling. Industrial fans activate automatically when the internal temperature exceeds 40°C, ensuring the components operate within their rated thermal limits.
7. Can the GGJ device be customized for specific grid voltages?
Absolutely. While 380V/400V/415V are standard, we can customize the GGJ device for different international voltages and frequencies (50Hz or 60Hz). We can also adjust the KVAR steps (e.g., 10kVAR, 25kVAR, or 50kVAR) to match your specific load profile.
8. What is the standard IP protection rating for these panels?
Our standard indoor GGJ panels are rated at IP30 or IP40. For harsh industrial environments, we can provide up to IP54, featuring enhanced sealing and filtered ventilation to protect the intelligent controllers from dust and moisture.
9. What testing is performed at your factory before shipping?
Every GGJ unit undergoes a rigorous Factory Acceptance Test (FAT). This includes insulation resistance tests, voltage withstand tests, and a full functional simulation of the switching logic. We provide a detailed test report and English wiring diagrams with every shipment.
10. How do you support international clients with installation?
We provide comprehensive English-language technical manuals and schematic drawings. Our engineering team in Shanxi also offers remote video support for commissioning. All internal components are clearly labeled for easy identification by your local electrical team.
