Low Voltage Switchgear & Distribution Panels

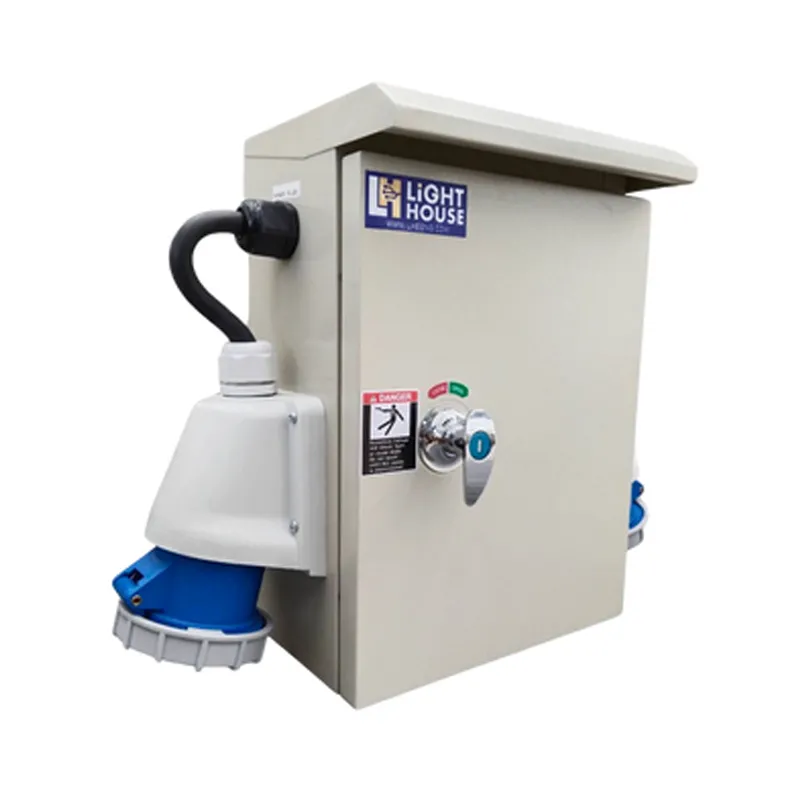

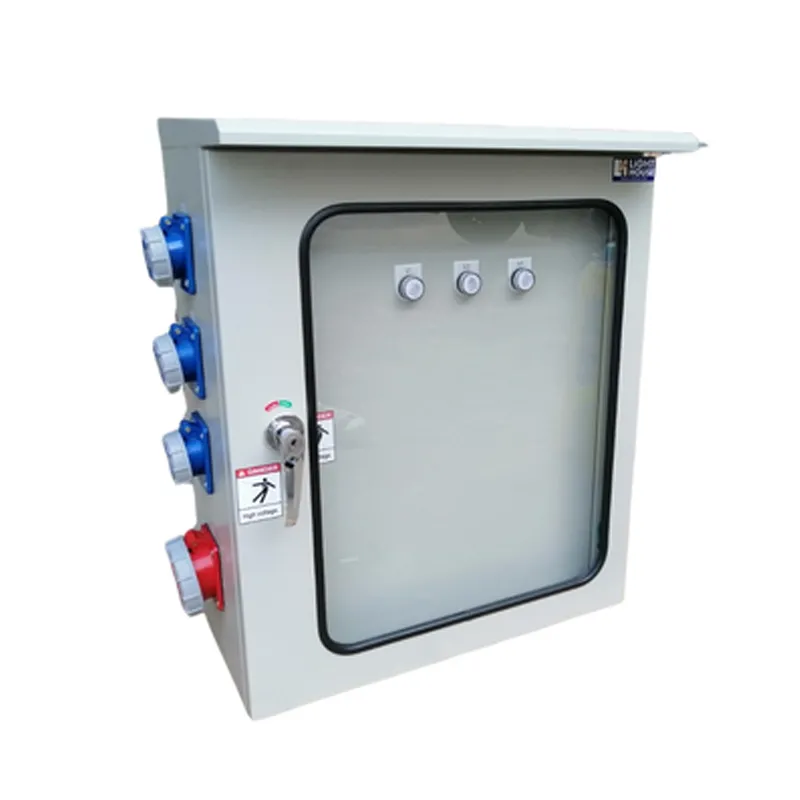

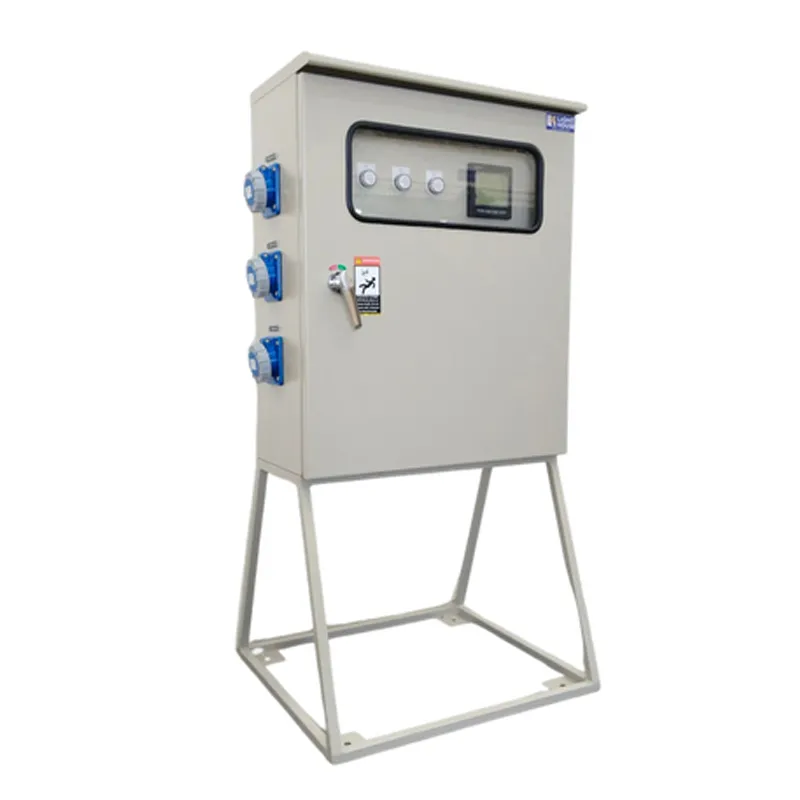

TEMPORARY PANEL is a mobile power distribution solution specifically designed for construction sites, temporary facilities, and event venues. This product provides safe, reliable, and flexible temporary power distribution with rated current ranging from 63A to 400A, meeting various temporary electricity needs and ensuring safe power supply for construction sites and temporary events.
Detailed Technical Specifications
Parameter Category | Technical Specifications |
Rated Characteristics | Rated Current: 63A, 100A, 160A, 250A, 400A |
Protection Degree | IP44 (Outdoor standard), IP54 (High protection level) |
Enclosure Material | 1.5mm thickness galvanized steel |
Enclosure Dimensions | 600×500×250mm to 800×600×300mm (Customizable as required) |
Configuration Options | 4-circuit, 8-circuit, 12-circuit standard configurations |
Cable Interfaces | Top/Bottom cable entries |
Compliance Standards | IEC 60439-4, IEC 60309, GB 7251.4 |
Key Product Features
1.Robust and Durable Design
Heavy-duty steel construction resistant to impact and corrosion
Water and dust proof design suitable for outdoor harsh environments
Anti-corrosion treatment for long-term outdoor use
2.Safety Protection System
Main RCD protection (100mA/300mA)
Circuit RCD protection (30mA)
Overload and short-circuit protection
Surge protection (Optional)
3.Complete and reliable earthing system
Flexible Configuration Options
Modular design allowing customizable circuit numbers
Multiple socket combinations: Industrial sockets, standard sockets, special sockets
Expandable design supporting additional functional modules
Customized panel layout for special requirements
4.Portable and Mobile
Lifting points for crane handling
Optional wheel base for easy site movement
Lightweight design reducing handling difficulty
Stackable design saving storage space
5.User-friendly Design
Clear labeling system with multilingual markings
Transparent viewing window for status checking
Tamper-proof locks preventing unauthorized operation
Cable management system for neat and safe installation
Typical Applications
Construction sites: Temporary power distribution
Outdoor events: Concerts, exhibitions, sports events
Emergency rescue sites: Disaster relief, emergency power supply
Film production locations: Location shooting power supply
Temporary facilities: Site offices, temporary accommodations
Maintenance operations: Equipment repair temporary power supply
Safety Certification
The product is CE certified, complying with Low Voltage Directive and Machinery Directive requirements, ensuring safe use worldwide.
Q1: What are your Temporary Panels primarily used for, and what environments can they withstand?
A: Our temporary power distribution panels are engineered for demanding environments such as construction sites, outdoor events, tunneling projects, and emergency power setups. Built with heavy-duty materials, they are highly resistant to weather, dust, and mechanical impact, ensuring reliable power supply in harsh conditions.
Q2: Do your temporary electrical panels comply with international safety standards?
A: Yes. As a professional manufacturer of high and low-voltage electrical equipment, we ensure our temporary panels strictly comply with the IEC 61439-4 standard (specifically for Assemblies for Construction Sites - ACS). This guarantees the highest level of safety and structural integrity for temporary power distribution.
Q3: What IP (Ingress Protection) and IK (Impact Protection) ratings do your temporary panels offer?
A: For outdoor and rugged applications, our temporary panels typically feature an ingress protection rating of IP44 to IP66, protecting against dust and heavy water jets. They also feature high IK ratings (e.g., IK08 to IK10), meaning the enclosures can withstand significant mechanical impacts and accidental drops on-site.
Q4: How do your temporary distribution boards protect on-site workers from electrical hazards?
A: Safety is our top priority. Every panel is equipped with high-quality Residual Current Devices (RCDs) or Earth Leakage Circuit Breakers (ELCBs) to prevent electric shock. Additionally, all incoming and outgoing circuits are protected by Miniature Circuit Breakers (MCBs) against overloads and short circuits.
Q5: Can the sockets and plugs be customized to match our country's specific standards?
A: Absolutely. We understand that plug and socket standards vary globally. We can configure your panels with industrial CEE plugs/sockets (IEC 60309), NEMA standard outlets, or specific local residential sockets based on your destination country's requirements.
Q6: What materials are used for the enclosures of your temporary panels?
A: We offer multiple enclosure options depending on your project budget and environmental needs. Options include heavy-duty cold-rolled steel with UV-resistant powder coating, marine-grade stainless steel (for coastal/corrosive areas), and high-impact thermoplastic or polycarbonate enclosures for lightweight portability.
Q7: Can you custom-build a temporary panel based on our specific single-line diagram (SLD)?
A: Yes. Backed by our own manufacturing facility, our engineering team can custom-build temporary distribution boards according to your specific Single Line Diagrams (SLD). We can customize the main incomer capacity, the number and type of outgoing sockets, and specific metering requirements.
Q8: Do you provide OEM or ODM services for tool rental companies or local distributors?
A: Yes, we are a direct manufacturer and welcome OEM/ODM partnerships. We can brand the temporary panels with your company logo, use your specific corporate colors for the powder coating, and tailor the internal components to match your local market preferences.
Q9: What is your Minimum Order Quantity (MOQ) and typical lead time?
A: For standard configurations, our MOQ is flexible to support your testing and trial needs. For custom designs, MOQ may vary. Typical production lead time is 2 to 4 weeks, depending on the order volume and customization complexity.
Q10: How do you package the temporary panels for safe international shipping?
A: To ensure flawless delivery, we use robust export packaging. The panels are wrapped in protective film to prevent scratches, cushioned with shock-absorbing foam, and packed in sturdy corrugated cartons or fumigation-free wooden pallets/crates for LCL or FCL ocean freight.
