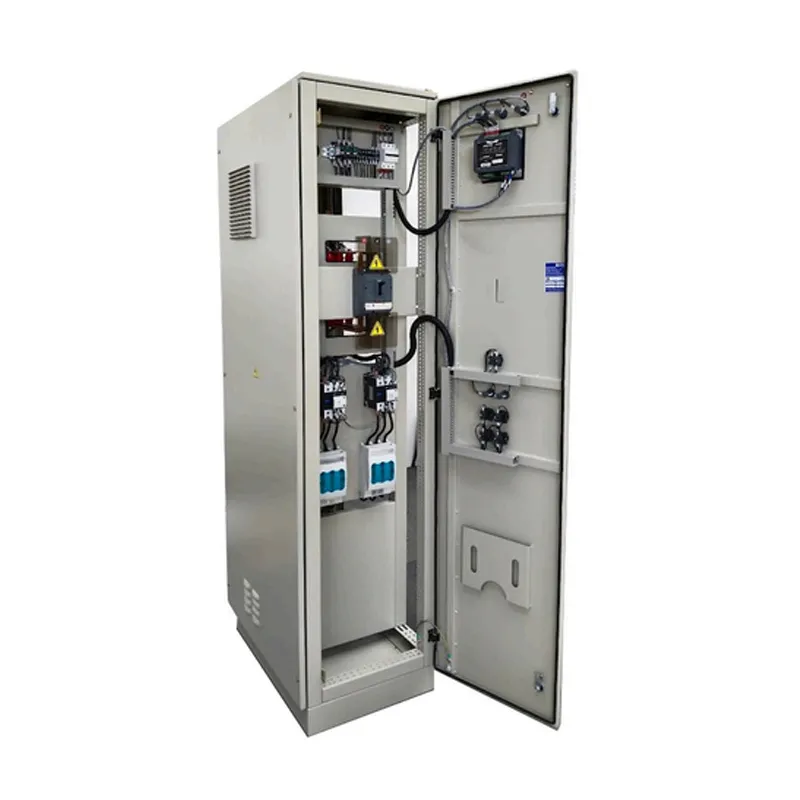

CAPACITOR BANK PANEL is a reactive power compensation device specifically designed to improve power factor and enhance power quality in electrical systems. By intelligently switching power capacitors, this product effectively compensates for reactive power generated by inductive loads, reducing line losses, improving power supply efficiency, and stabilizing grid voltage. It is widely used in industrial, commercial, and residential distribution systems.
Detailed Technical Specification
Parameter Category | Technical Specifications |
Rated Characteristics | Rated Voltage: 400V/230V AC |
Capacitors | Type: Self-healing dry-type capacitors |
Switching Devices | Contactor type: Rated current 45A-400A |
Protection Degree | IP30 (Indoor standard) |
Control Methods | Power factor control: COSφ setting |
Enclosure Material | 1.5-2.0mm premium cold-rolled steel |
Key Product Features
1.High Efficiency Compensation
Power factor improvement: Can improve power factor from 0.7 to above 0.95
Significant energy saving: Reduce reactive power loss, save electricity cost 10%-30%
Fast response: Switching response time ≤20ms
Multi-step compensation: 4-12 steps compensation, high accuracy
2.Intelligent Control System
Digital controller: LCD display, menu operation
Automatic control: Automatic switching according to load changes
Data monitoring: Real-time display of voltage, current, power factor
Communication function: RS485 interface, Modbus protocol
3.Safety Protection Functions
Overvoltage protection: Automatic cut-off when voltage exceeds set value
Undervoltage protection: Automatic cut-off when voltage below set value
Overcurrent protection: Automatic protection when current exceeds set value
Temperature protection: Overheat automatic protection
Discharge protection: Built-in discharge resistors
4.Reliable Components
High-quality capacitors: Good self-healing performance, long life
Special contactors: Strong arc suppression capability
Fuse protection: Fast fuse protection
Optional reactors: Suppress harmonic amplification
5.Easy Installation and Maintenance
Modular design: Easy installation and maintenance
Front operation design: All operations completed from the front
Indicator lights: Clear display of operation status
Easy maintenance: Simple component replacement
Typical Applications
Industrial sector: Factory power distribution systems, motor loads
Commercial buildings: Shopping malls, hotels, office buildings
Public facilities: Hospitals, schools, stadiums
New energy: Photovoltaic power stations, wind farms
Special loads: Welding machines, cranes, elevators
Optional Configurations
Basic Type: Contactor switching, basic functions
Standard Type: Intelligent control, data monitoring
Advanced Type: Thyristor switching, fast response
Harmonic resistant: Built-in reactors, harmonic suppression
Smart Type: Remote monitoring, data analysis
