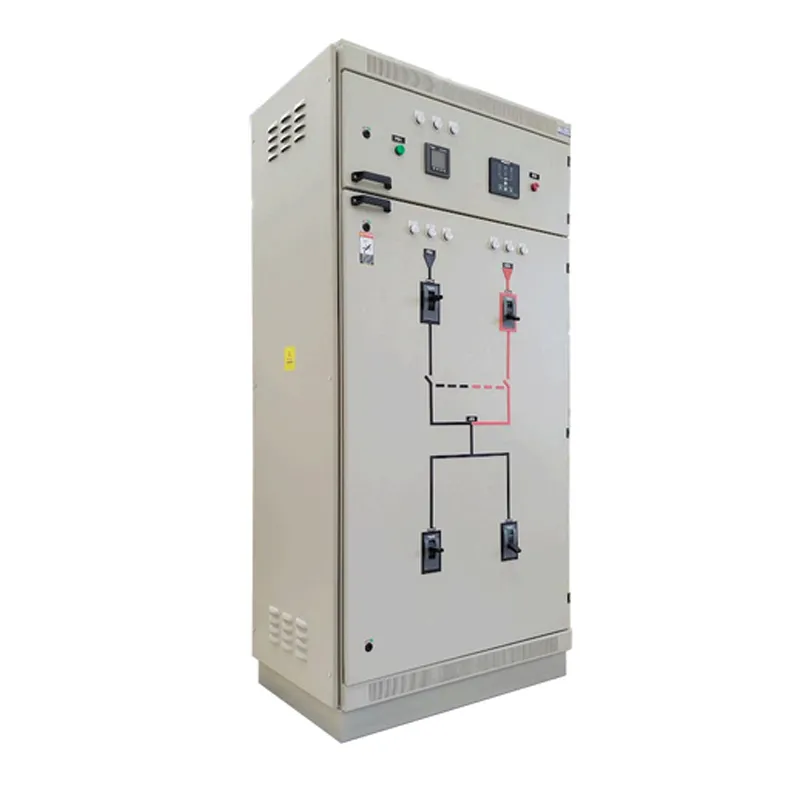

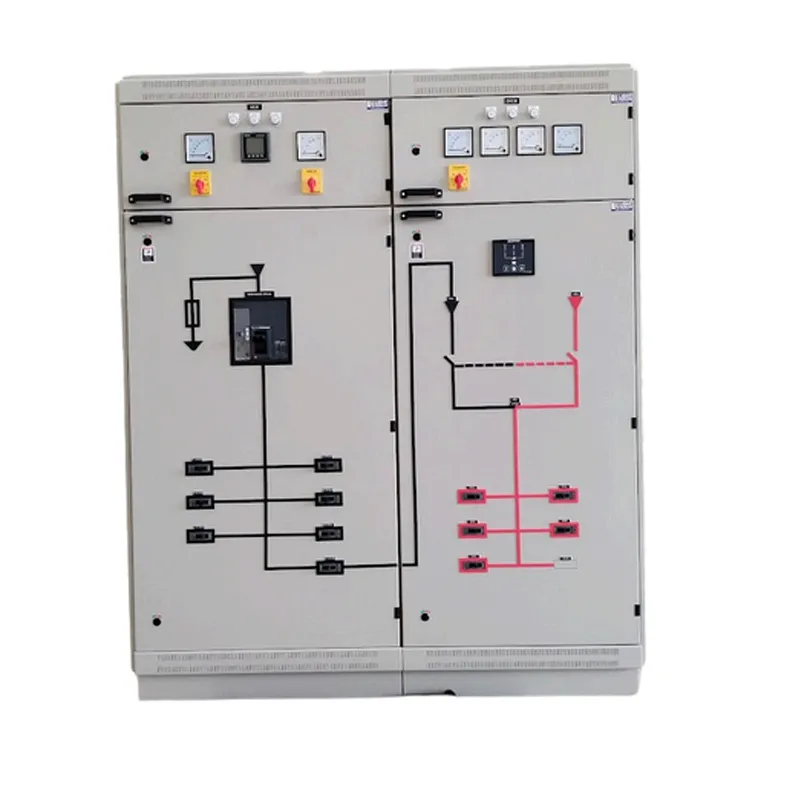

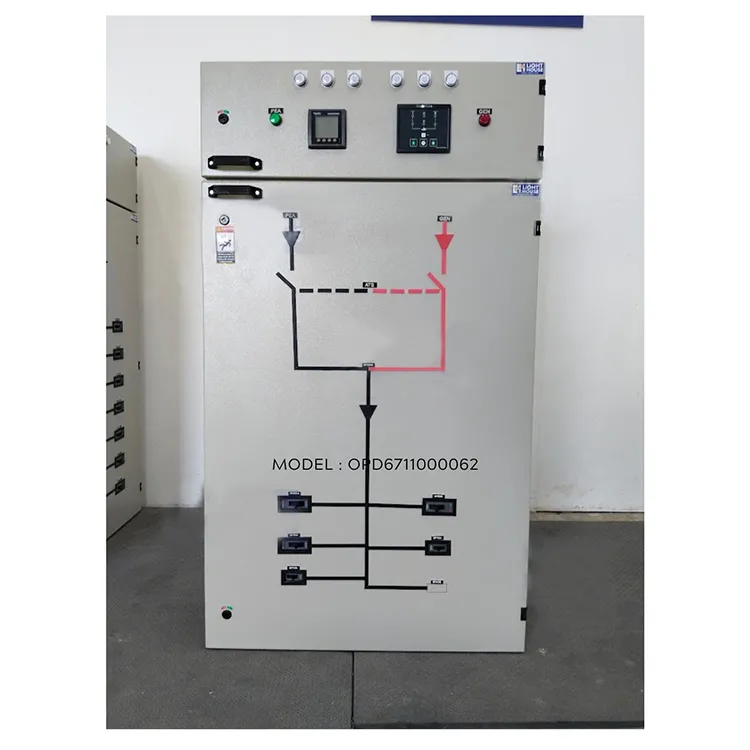

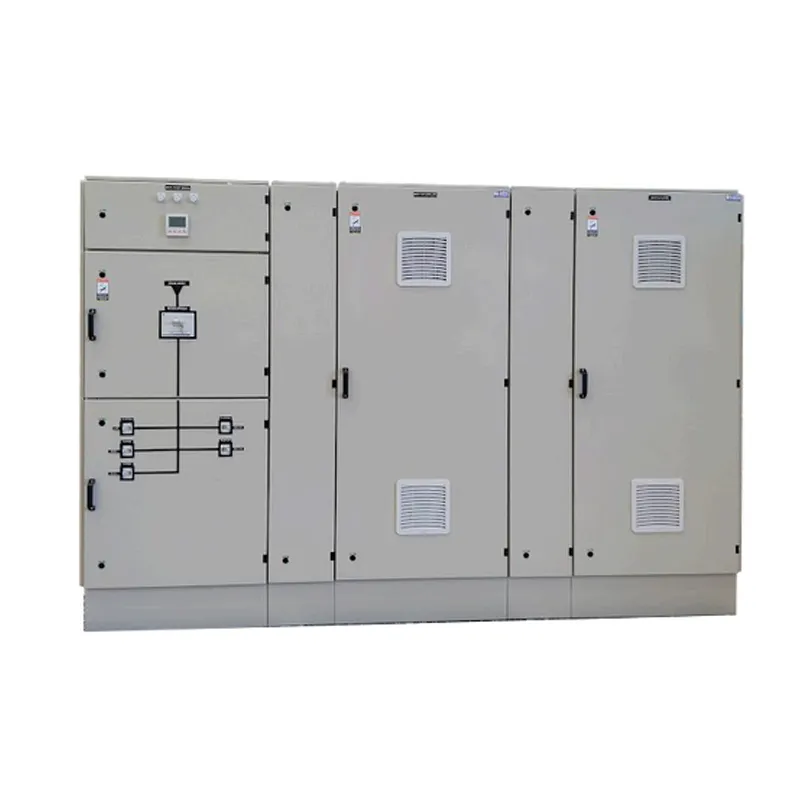

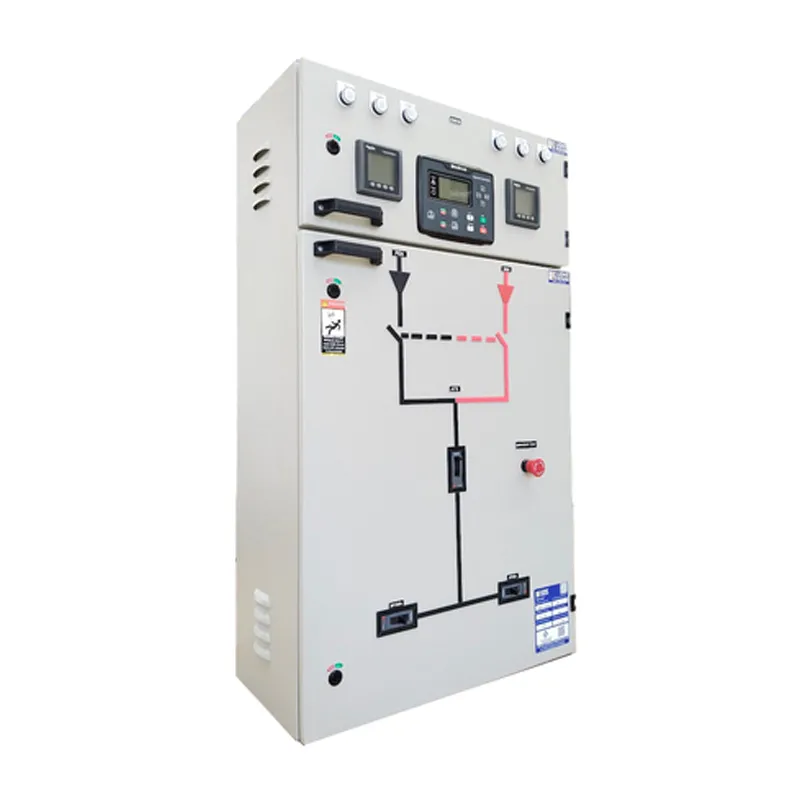

EMDB-ATS / MTS (Emergency Power Automatic/Manual Transfer Switch Distribution Board) is an intelligent transfer system specifically designed for critical power applications, providing automatic or manual switching between main power and backup power sources. This product ensures seamless transition to backup power during main power failure, guaranteeing continuous power supply for critical loads. It is suitable for hospitals, data centers, communication base stations, and other venues with extremely high requirements for power supply continuity.
Detailed Technical Specifications
Parameter Category | Technical Specifications |
Rated Characteristics | Rated Current: 100A, 250A, 400A, 630A, 800A, 1000A, 1250A, 1600A |
Transfer Performance | Transfer Time: Automatic mode ≤1.5s, Manual mode ≤3s |
Switch Type | Automatic Transfer Switch (ATS): 4-pole double throw, mechanical and electrical interlock |
Protection Degree | IP41 (Indoor standard), IP54 (High protection level) |
Enclosure Material | 2.0mm premium cold-rolled steel |
Control Functions | Microprocessor intelligent control |
Compliance Standards | IEC 60947-6-1, GB/T 14048.11, UL 1008 |
Key Product Features
1.Intelligent Transfer System
Dual power monitoring: Real-time monitoring of main and backup power voltage, frequency, phase
Automatic transfer: Automatic switch to backup power during main power failure
Automatic return: Automatic return to main power after restoration, with settable delay
Phase detection: Prevent out-of-phase transfer, ensure safe operation
2.High Reliability Design
Mechanical and electrical interlock: Prevent simultaneous closure of both power sources
Neutral position protection: Ensure operation only at neutral position
Overload capacity: Meet transfer requirements under short-circuit conditions
Long electrical life: Mechanical life up to 10000 operations
3.Intelligent Monitoring
LCD display: Real-time display of power parameters and switch status
Event recording: Record transfer events, fault information
Remote monitoring: Support remote status monitoring and control
Alarm function: Power abnormality, switch fault alarm
4.Safety Protection Functions
Over/under voltage protection: Set protection thresholds to prevent equipment damage
Over/under frequency protection: Frequency abnormality protection
Phase loss protection: Prevent transfer during phase loss
Emergency operation: Emergency manual priority function
5.Flexible Configuration Options
Multiple operation modes: Automatic, manual, remote control
Multiple installation methods: Wall-mounted, floor-standing, cabinet-mounted
Extended functions: Support generator auto-start control
Custom interface: Support multilingual display interface
Typical Applications
Medical facilities: Hospital operating rooms, ICU wards, emergency centers
Data centers: Server rooms, network centers, communication rooms
Public buildings: Airports, stations, stadiums, convention centers
Industrial sector: Production line critical equipment, control systems
Commercial buildings: Premium office buildings, hotels, shopping malls
Infrastructure: Fire protection systems, security systems, emergency lighting
Optional Configurations
Basic Type: Automatic transfer function, basic protection functions
Standard Type: Additional intelligent monitoring and communication functions
Enhanced Type: Full-function configuration, support generator control
Explosion-proof Type: Suitable for explosive atmospheres
Outdoor Type: Fully sealed design for outdoor installation
Q1：What is the main difference between the ATS and MTS in this distribution board?
A: The ATS (Automatic Transfer Switch) automatically detects a power failure and switches to the emergency source (like a generator) within milliseconds. The MTS (Manual Transfer Switch) requires an operator to manually toggle the power source, offering a cost-effective solution for non-critical loads where immediate switching isn't vital.
Q2：What is the typical switching time (Transfer Time) of your ATS?
A: Our ATS units typically achieve a transfer time of less than 100ms (standard range 50ms-250ms depending on the controller), ensuring minimal interruption to your critical equipment during power transitions.
Q3：Does the panel include mechanical and electrical interlocking?
A: Yes, safety is our priority. Our EMDB units are equipped with both mechanical and electrical interlocks to prevent the simultaneous connection of both power sources, eliminating the risk of short circuits or back-feeding.
Q4：Can this board integrate with a Diesel Generator set?
A: Absolutely. Our ATS controllers feature Remote Start/Stop signals. When the utility power fails, the panel sends a dry contact signal to start the generator and switches the load once the voltage and frequency are stable.
Q5：What brands of switching components do you use?
A: We use world-class components such as ABB, Schneider, Socomec, or our high-quality domestic brands (e.g., Aisikai) known for high breaking capacity and long electrical life, depending on your project specifications.
Q6：Do you offer 3-pole or 4-pole transfer switches?
A: We provide both 3-Pole and 4-Pole configurations. A 4-pole switch is often recommended for systems requiring complete neutral isolation to avoid ground loop currents and ensure safety during maintenance.
Q7：What are the enclosure options for the EMDB-ATS/MTS?
A: We offer enclosures made of cold-rolled steel with powder coating (RAL 7035) or stainless steel (304/316) for corrosive environments. Protection ratings range from IP42 for indoor utility rooms to IP65 for outdoor emergency power setups.
Q8：Does the panel support manual override in case of controller failure?
A: Yes. Our ATS units include a manual operation handle. In the unlikely event of an electronic controller failure, authorized personnel can safely switch the power source manually using the provided handle.
Q9：What tests are conducted to ensure reliability before shipping?
A: Each unit undergoes a comprehensive functional test, including multiple cycles of simulated power failure, automatic transfer, return-to-utility tests, and dielectric strength tests. We ensure the logic is 100% accurate before it leaves our factory.
Q10：Can you provide the wiring diagrams and technical manuals in English?
A: Yes, all our documentation—including electrical schematics (CAD/PDF), user manuals, and labeling—is provided in professional English. This ensures your local electrical team can install and maintain the board without any language barriers.
